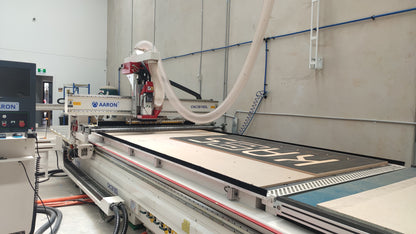

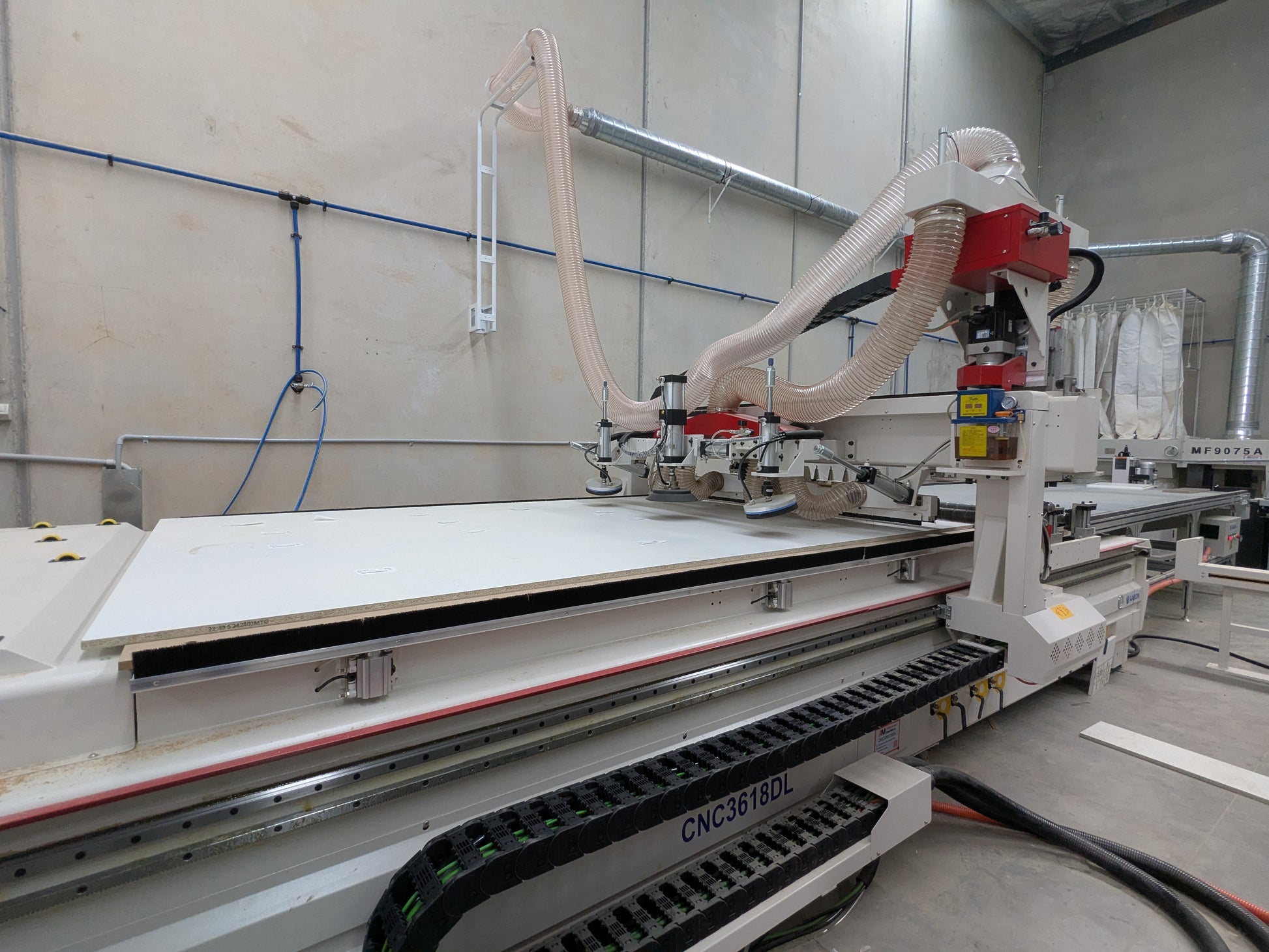

Aaron CNC3618DL - 3600 x 1800 CNC Nesting Machining Centre with Loading, Unloading and Labelling

Aaron CNC machines are heavy-duty, high-quality and competitively priced.

Machines are configured to order based on your requirements. Common sizes to suit Australian board supplies include:
- 2400 x 1200 (CNC2412)
- 2400 x 1800 (CNC2418)
- 2800 x 1200 (CNC2812)
- 3600 x 1200 (CNC3612)
- 3600 x 1800 (CNC3618)

Contact us to find out more or place an order.

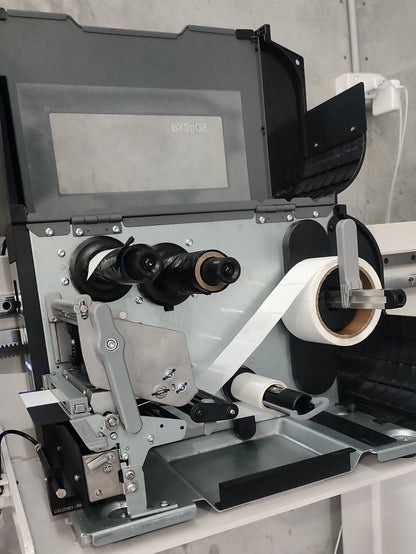

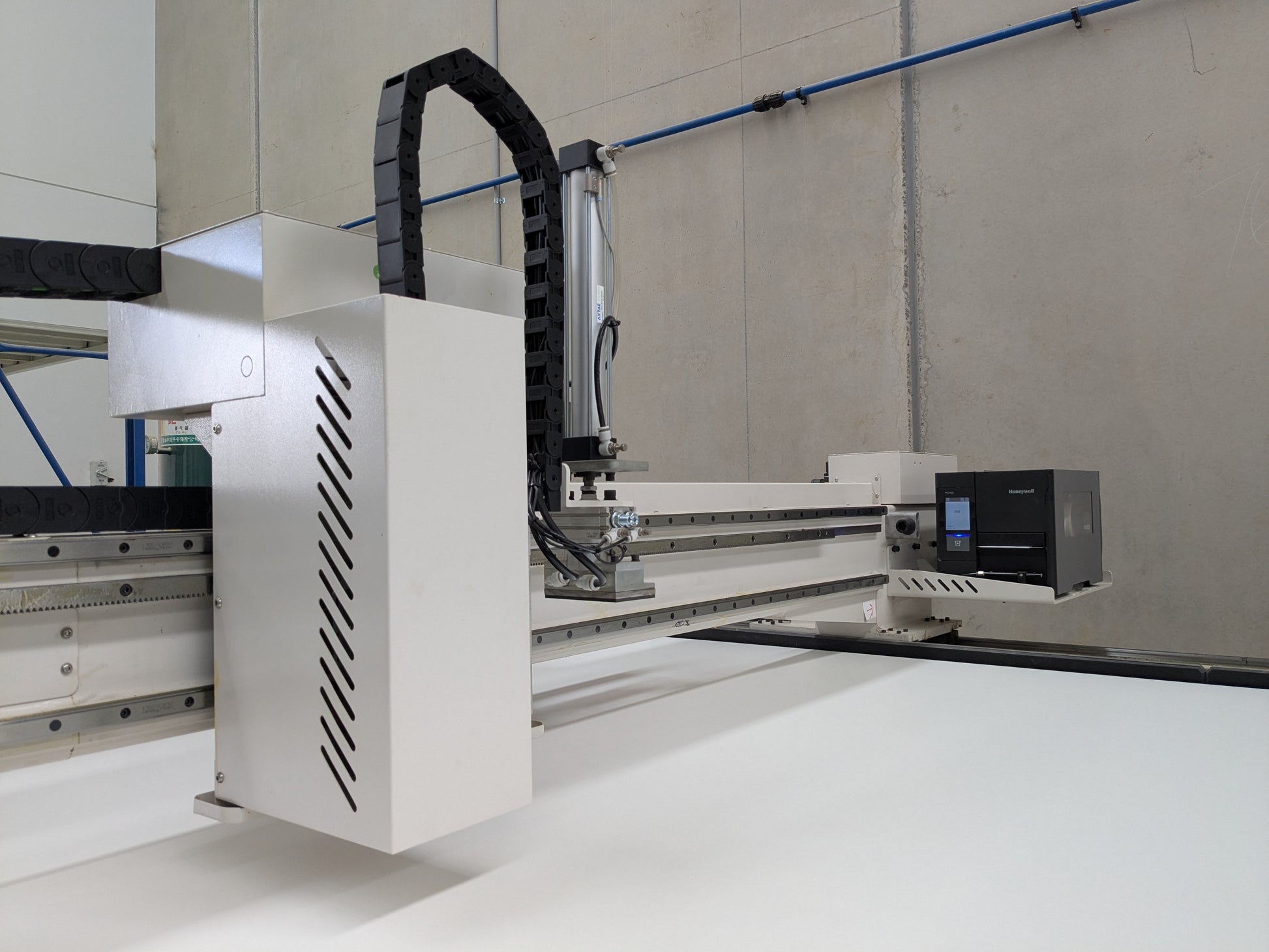

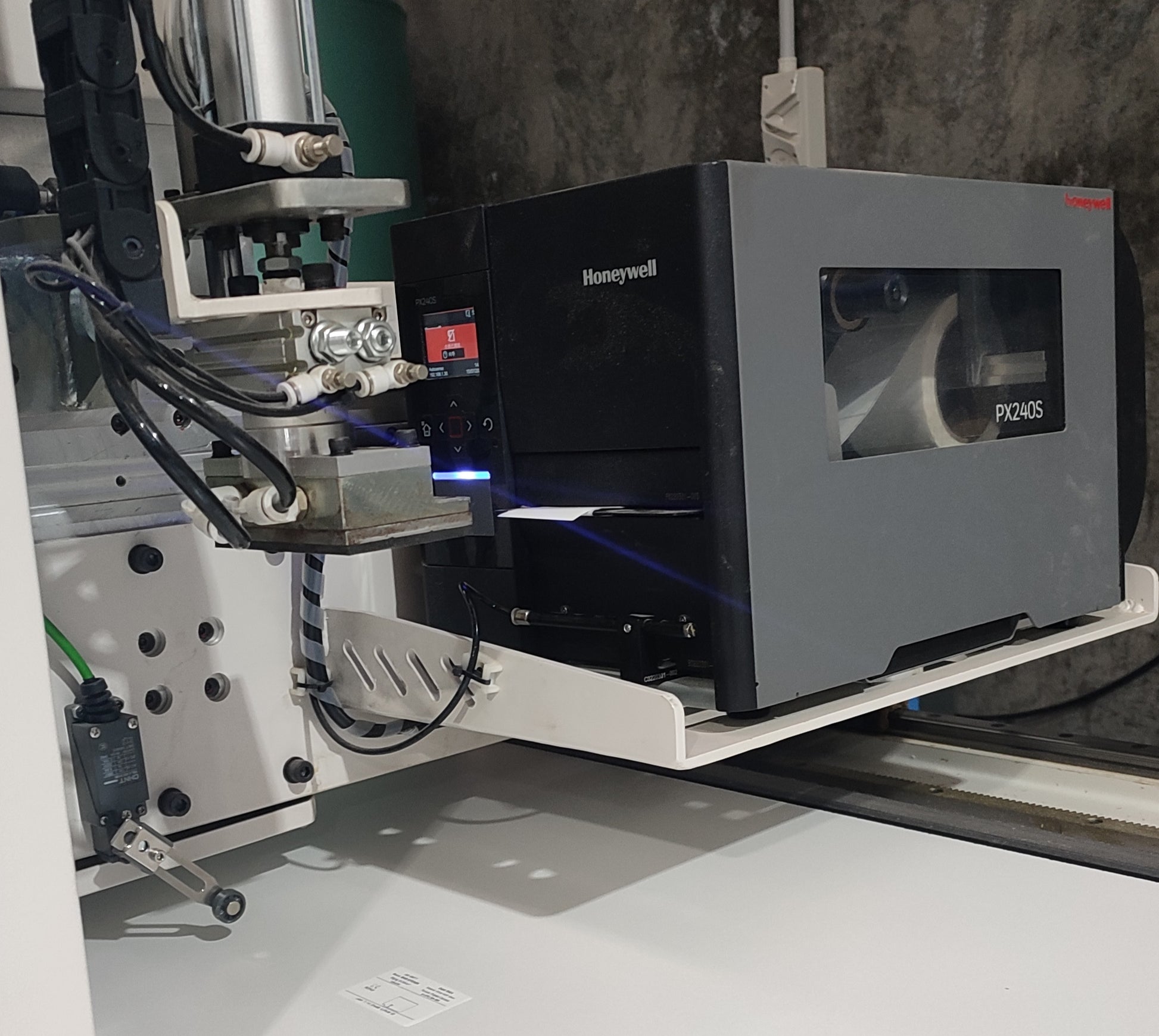

Our labelling system incorporates the Honeywell PX240S Industrial Label Printer, ensuring durability, high-quality printing and stable operation.

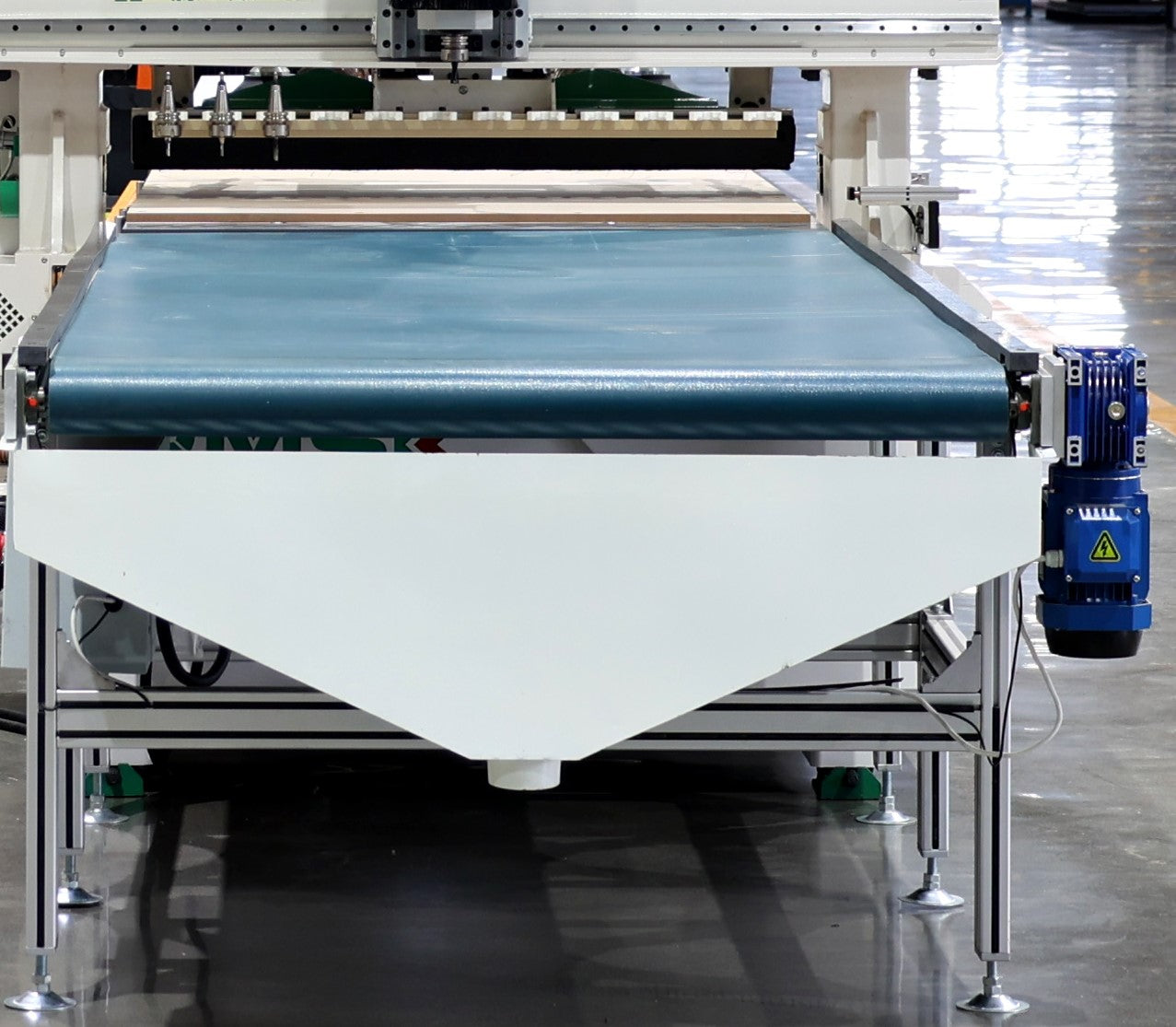

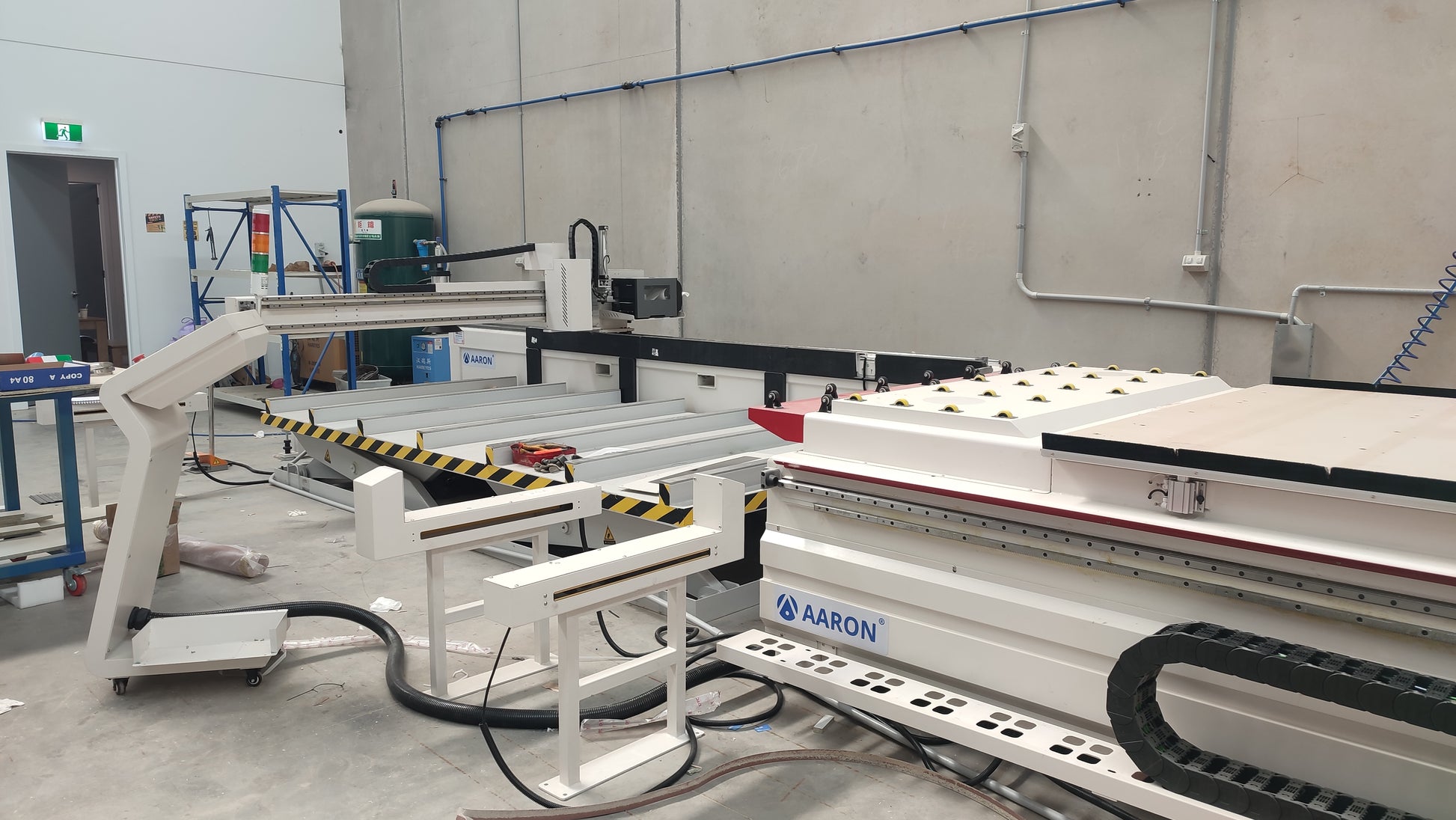

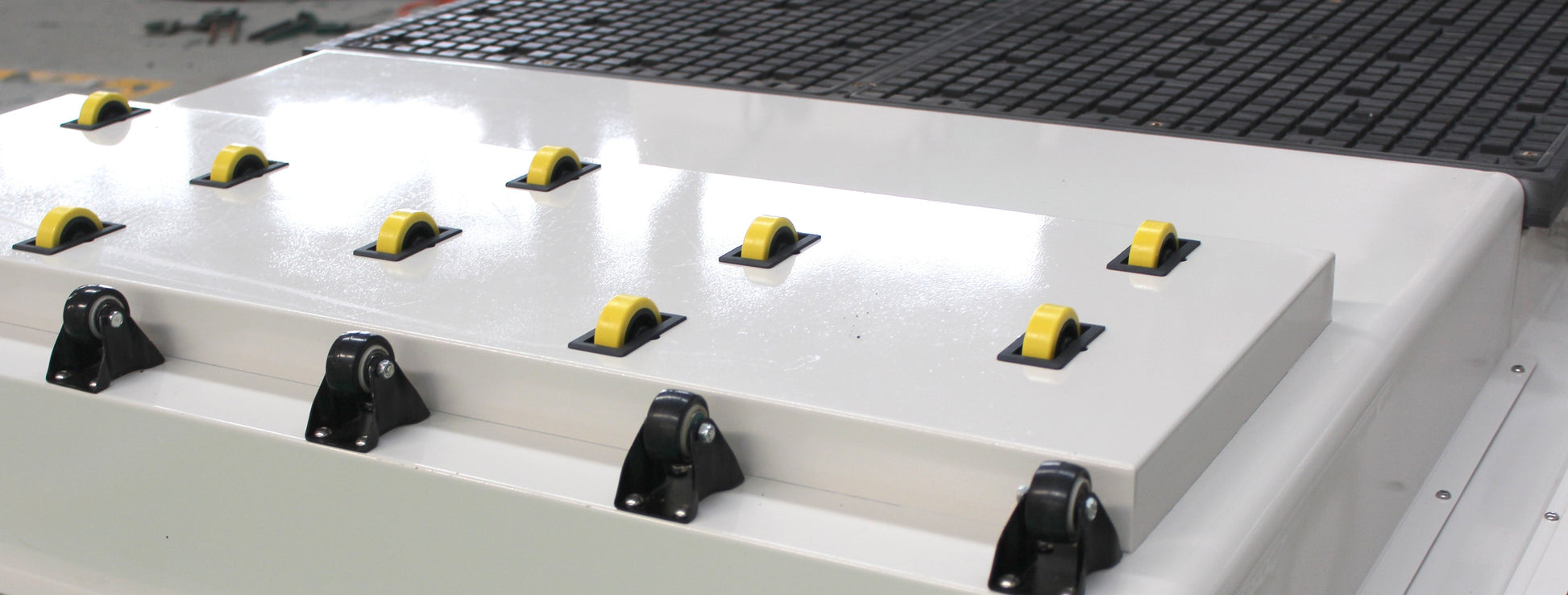

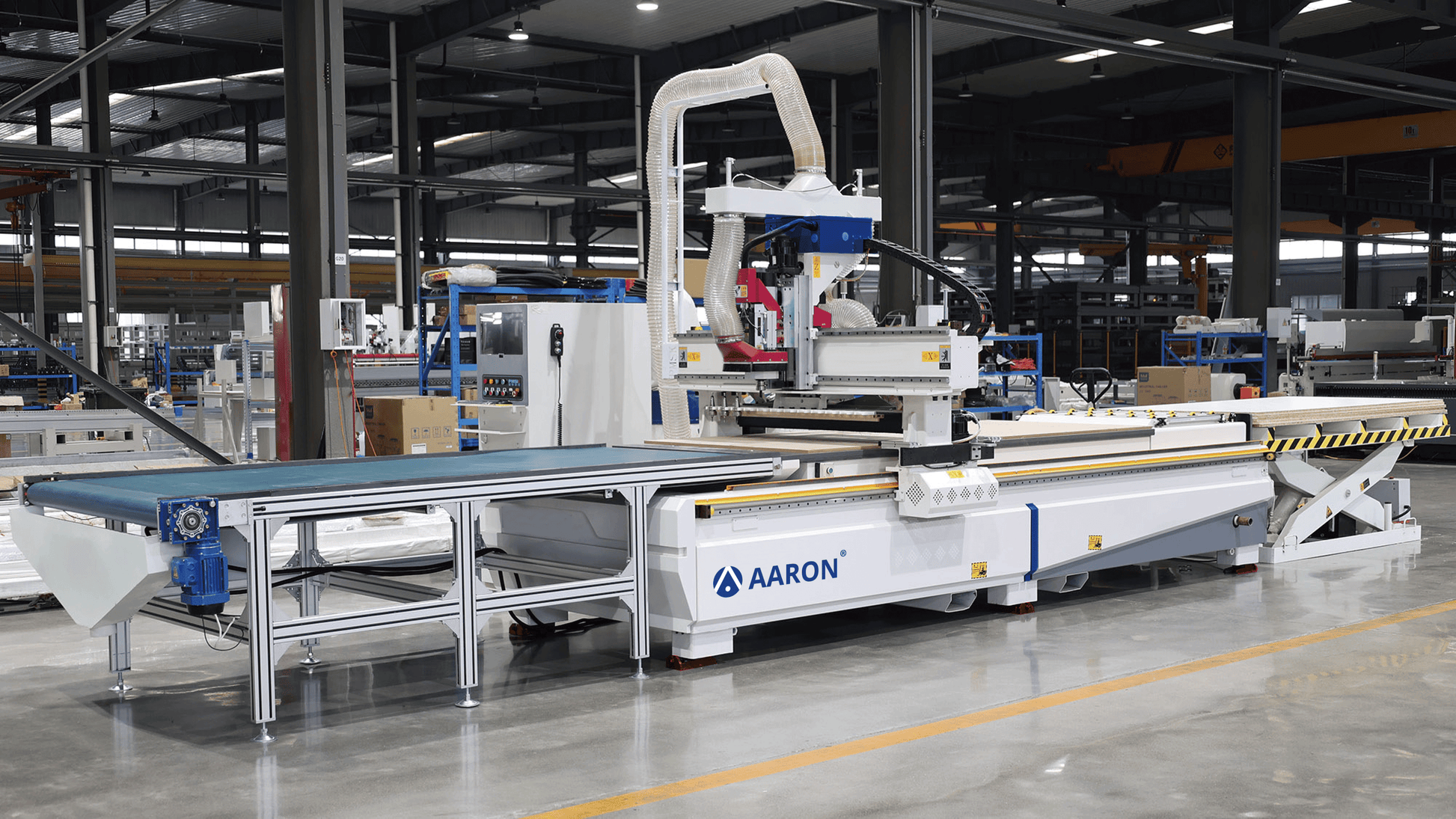

Load entire stacks and simplify offloading workflows with the loading lift device and unloading conveyor belt systems.

The Aaron CNC3618DL has the following features:

• 1830 x 3700 x 50 mm working area, other sizes by enquiry
• With loading/unloading and labelling

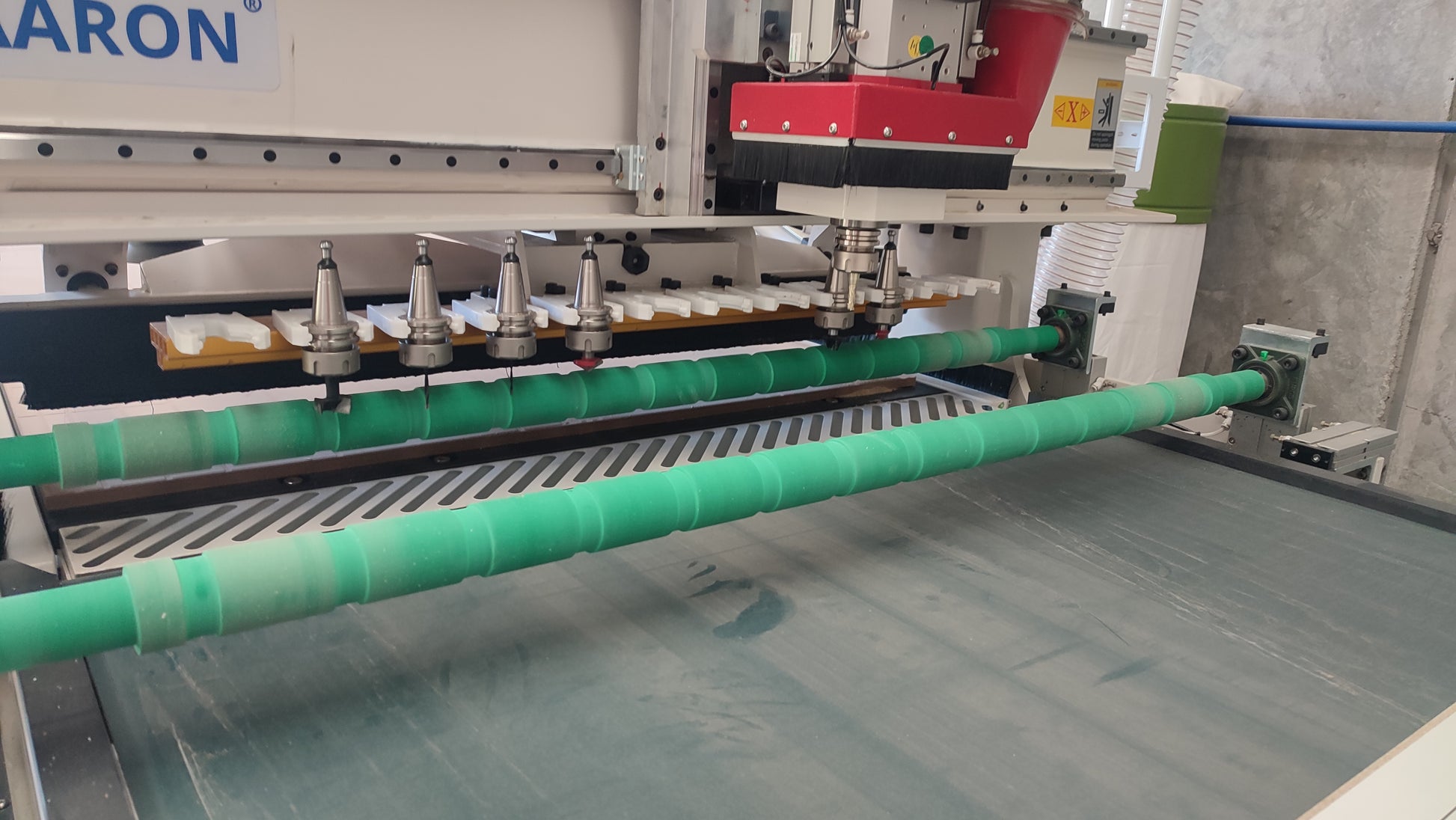

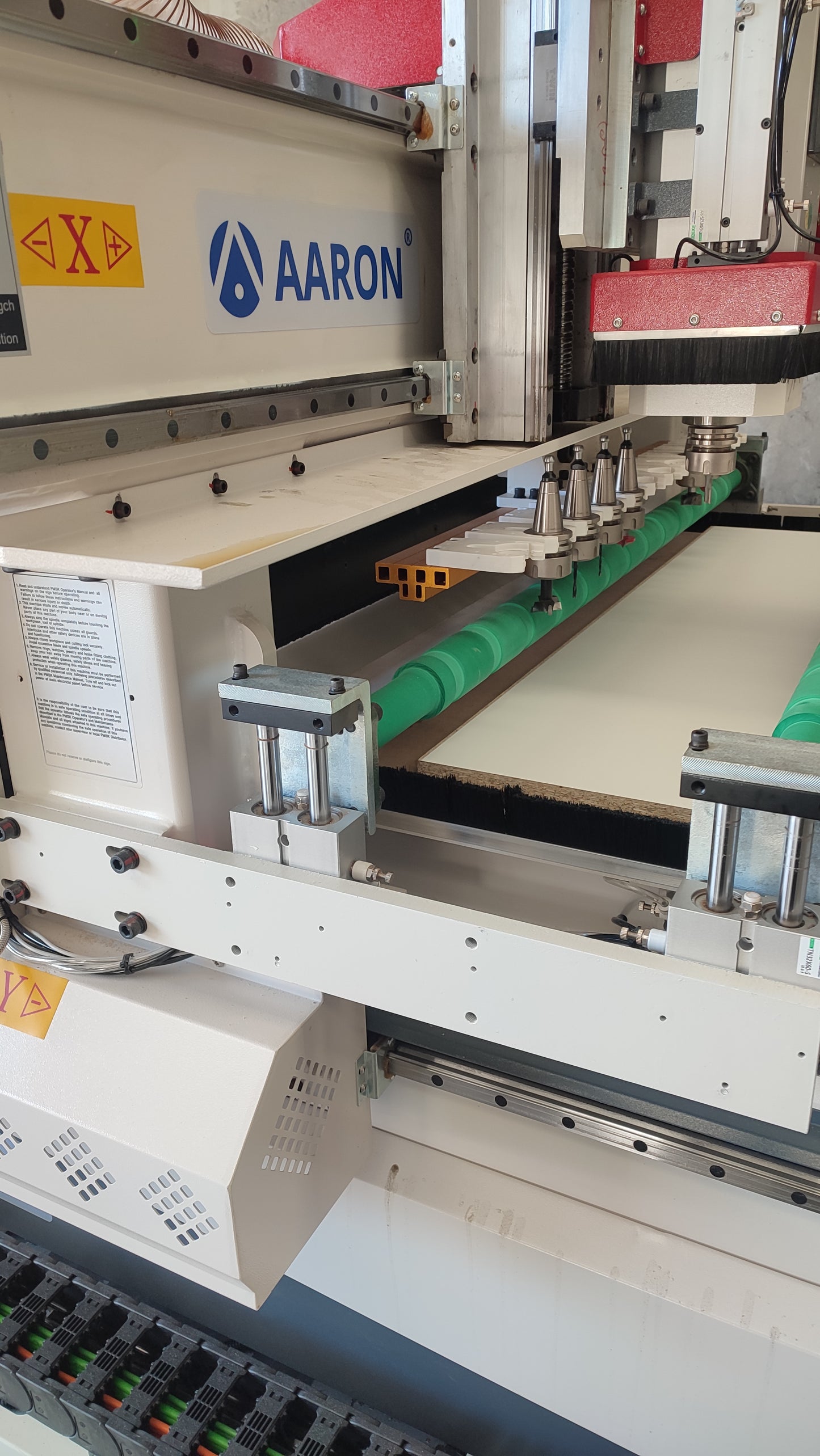

• 12 Linear Automatic Tool-Changer (ATC) attached to gantry for faster tool changes
• Windows-based operating software
• 12 - 25 m/min feed speed, 100 m/min idle speed
• Multi-zone vacuum table
• One 9kW air cooling ATC spindle, 12 capacity tool magazine
• 3 x 5.5kW Becker vacuum pumps
• Honeywell label printer
• High performance inverter, anti-strong interference, energy saving and environmental protection

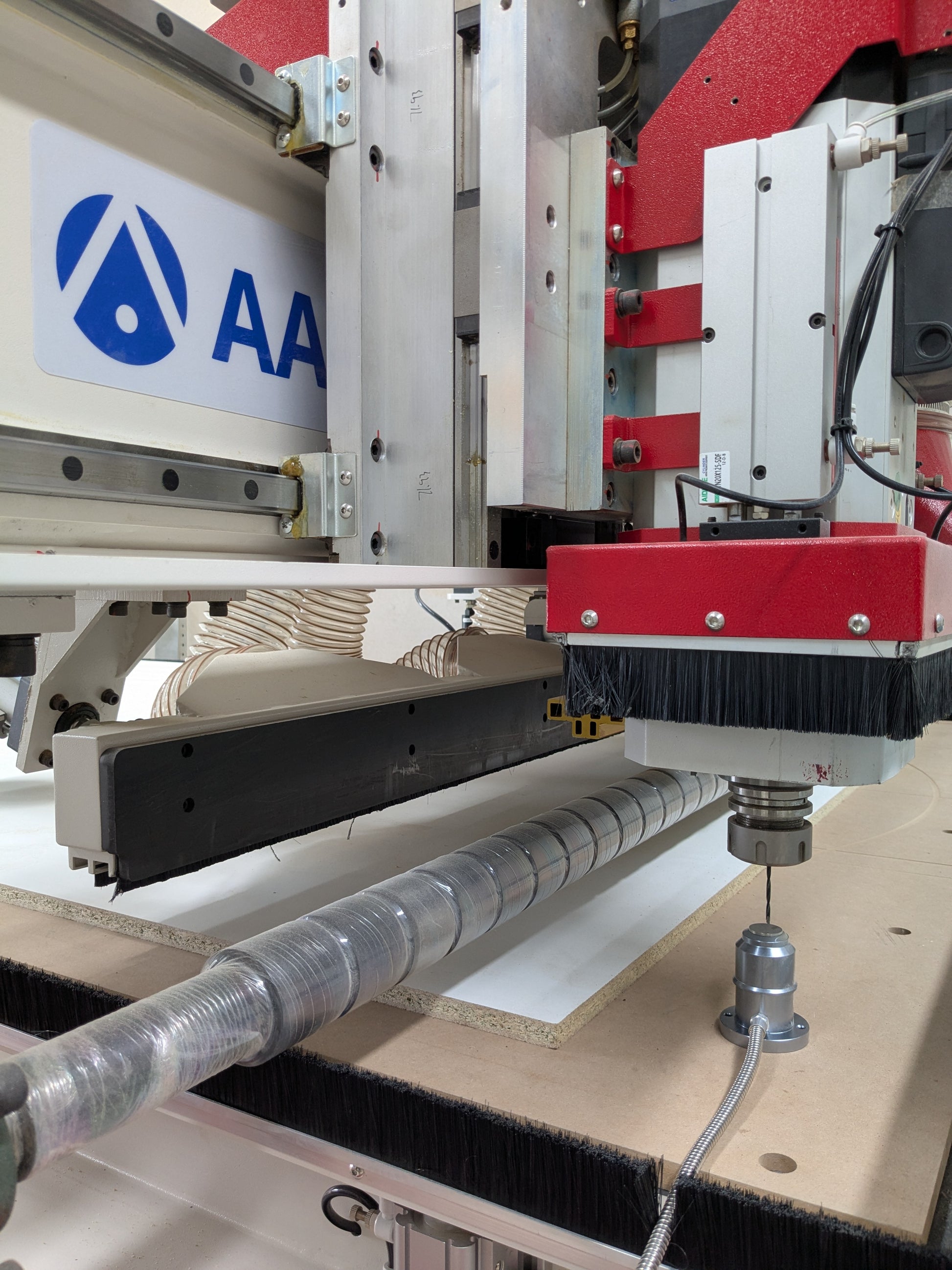

• Thousandth grade high precision tool setting device, stable cutting and continuous improvement

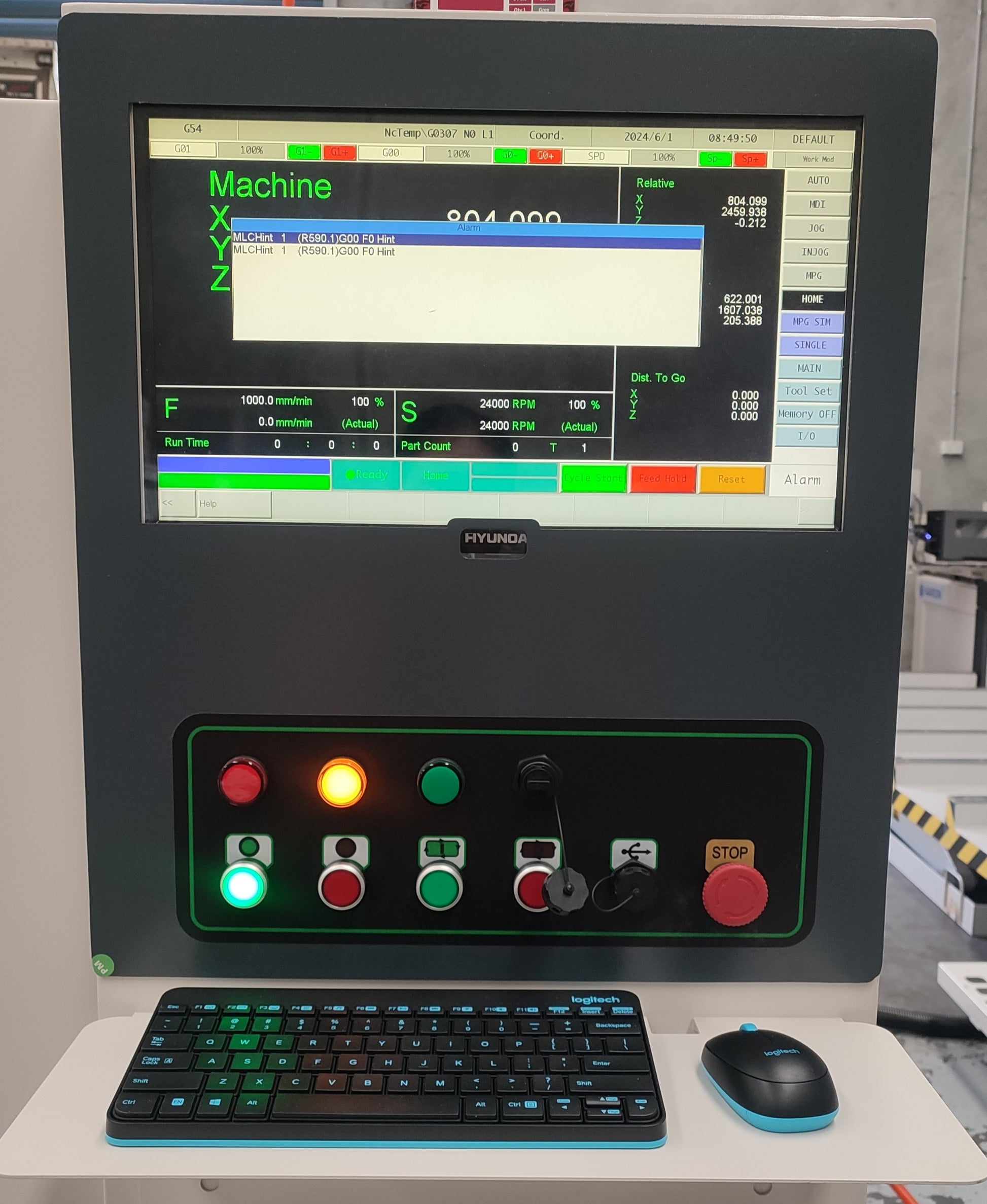

• Taiwan Syntec high performance control system

Dimensions - 13500 x 2,300 x 2300 mm
Total Power - 42 kW
Working Area: 3700 x 1830 x 50 mm
