Aaron GLIDE 32S/38S - 3200/3800 mm Single-phase Digital Precision Panel Saw MJ-32DS / 38DS

Aaron GLIDE 32S/38S - 3200/3800 mm Single-phase Digital Precision Panel Saw MJ-32DS / 38DS

$18,700.00
$18,700.00
Sale Sold out
Taxes included.
Size

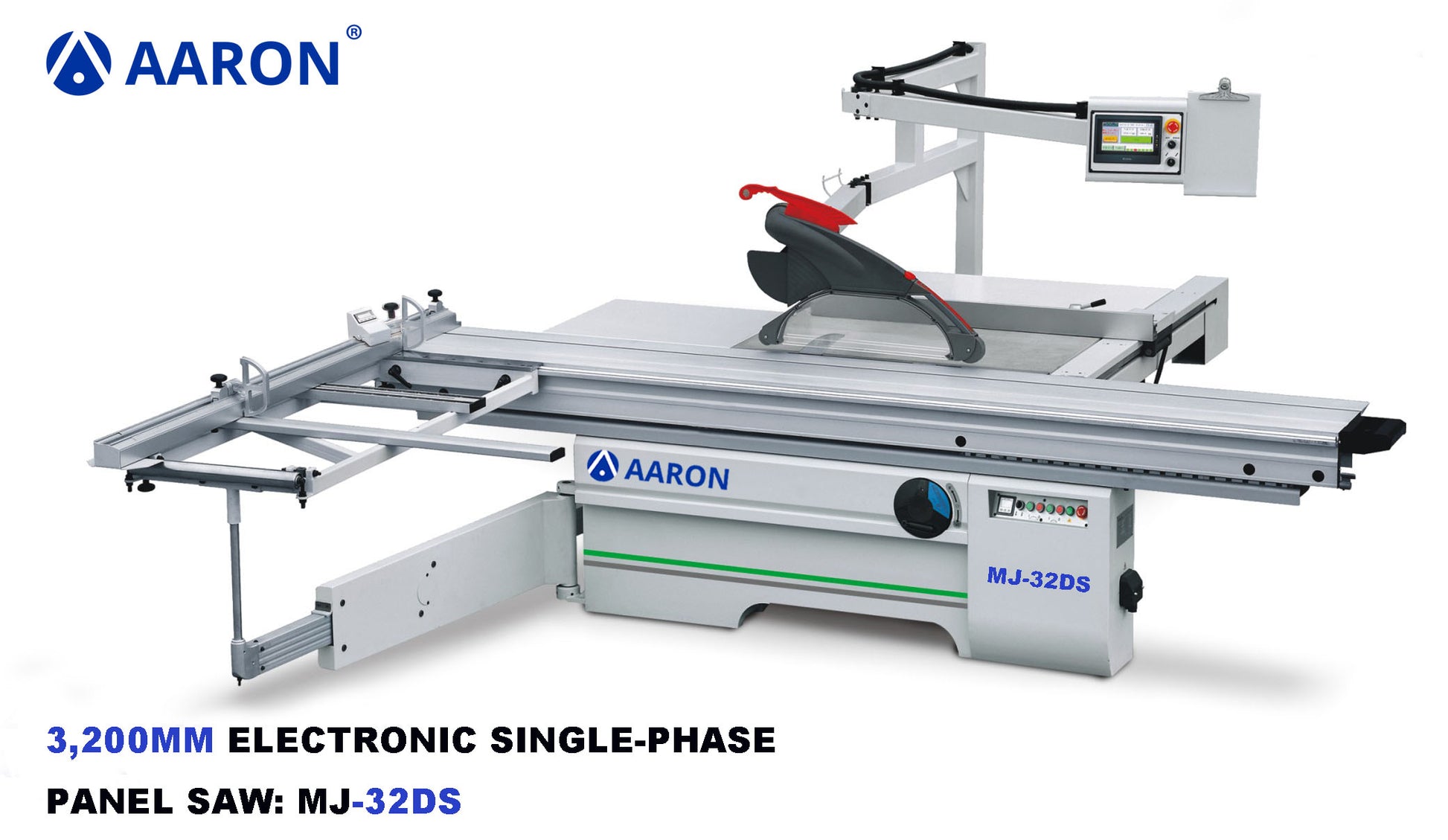

The Aaron MJ-32DS is a 3.2m Single-phase digital precision panel saw with a touch-screen control interface.

Dimension of sliding table 3200/3800 x 430 mm
Gross cut capacity 3200/3800 mm
Tilting saw blade 90°–45°

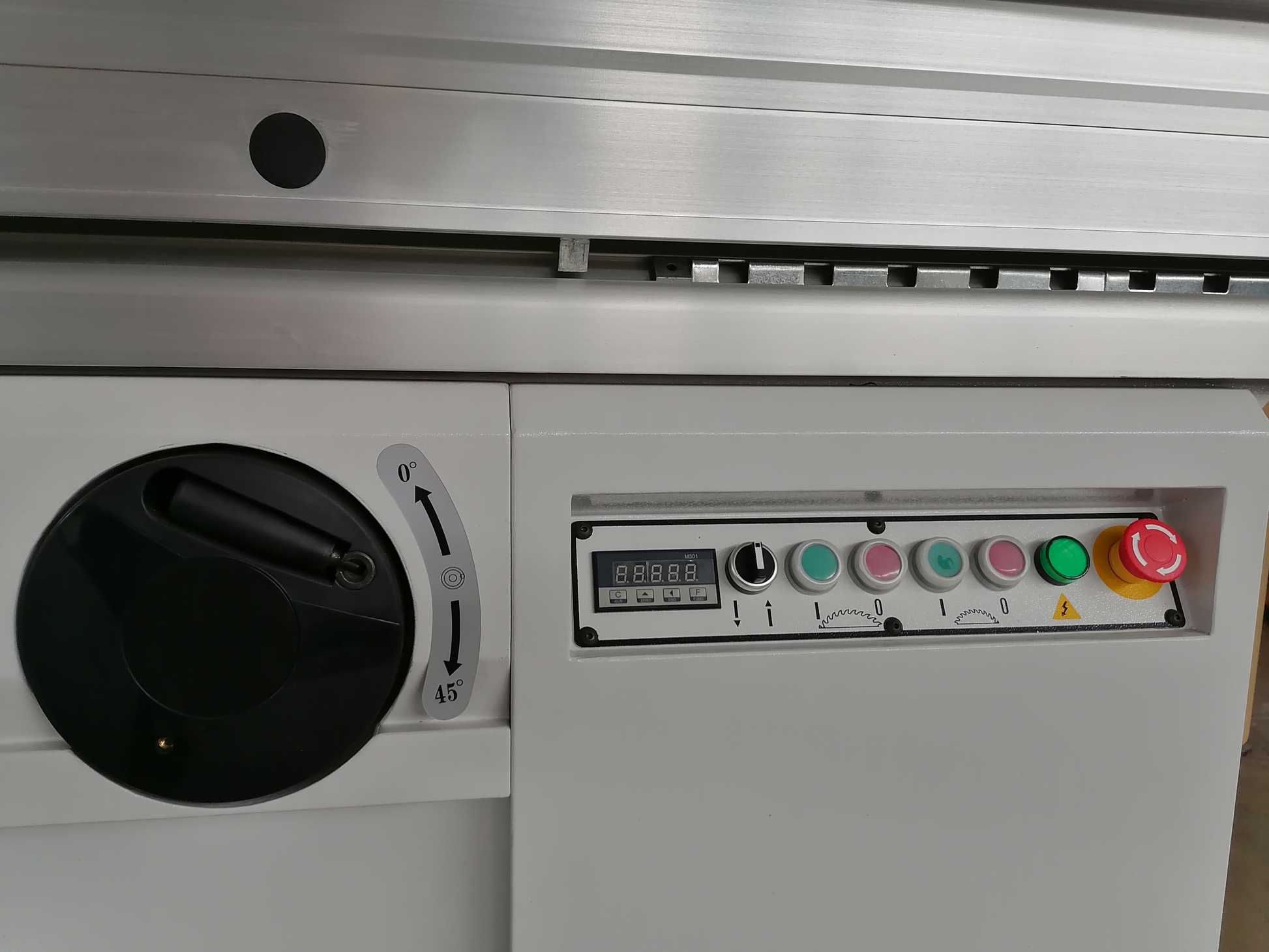

Tilting mechanism Manual hand-wheel controlled
Maximum height of cut 120mm(90°) 75mm(45°)
Maximum main saw blade size
350*30mm
Scoring saw diameter 120*20mm

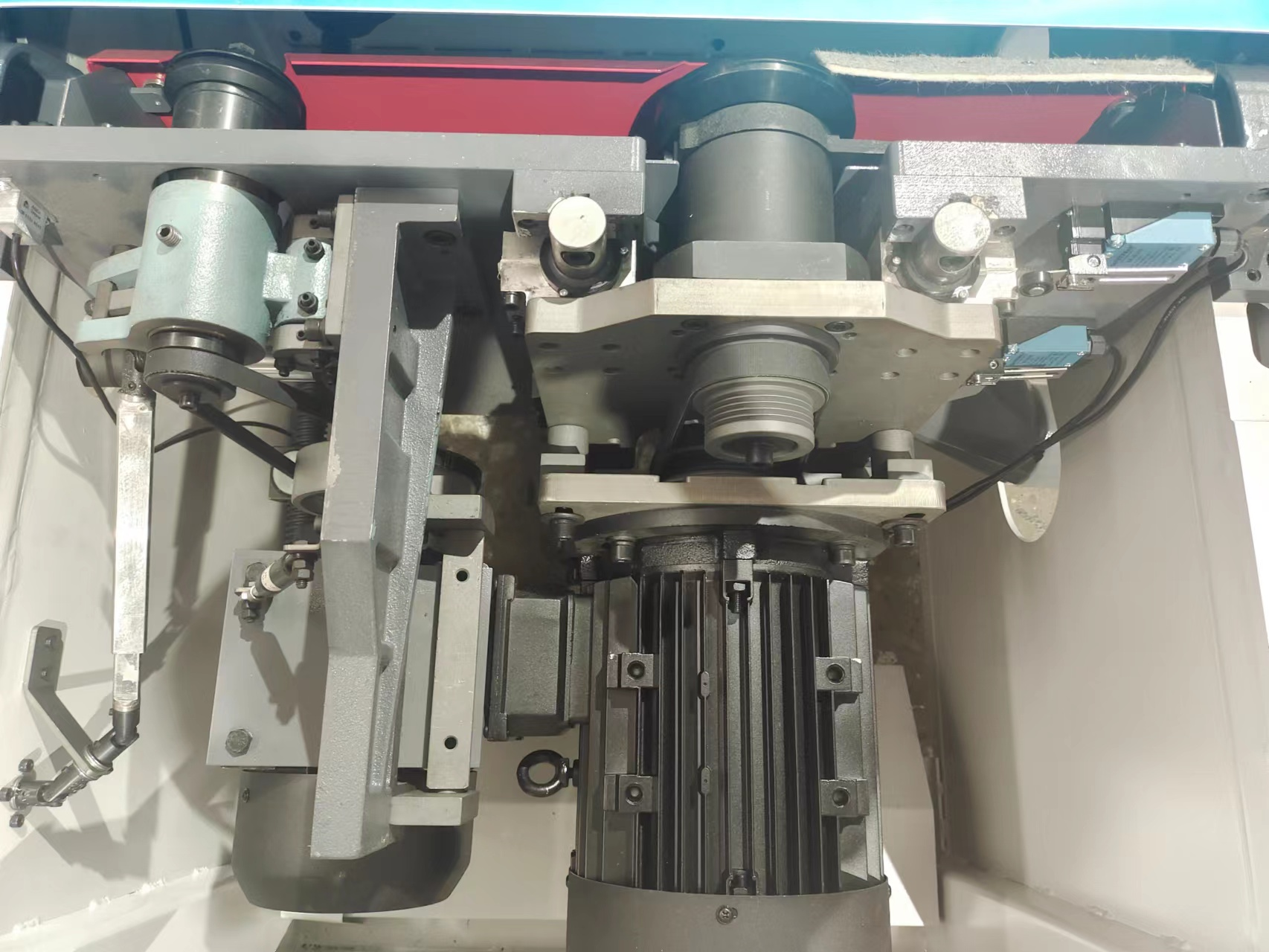

Main saw power/Scoring saw power 3 / 5 kW + 0.75 kW
(4 / 7 HP + 1 HP)
Speed of main saw spindle 4200/5600rpm
Speed of Scoring saw blade 8500rpm
Net weight/Gross weight 860/970kg
Table height 850mm
