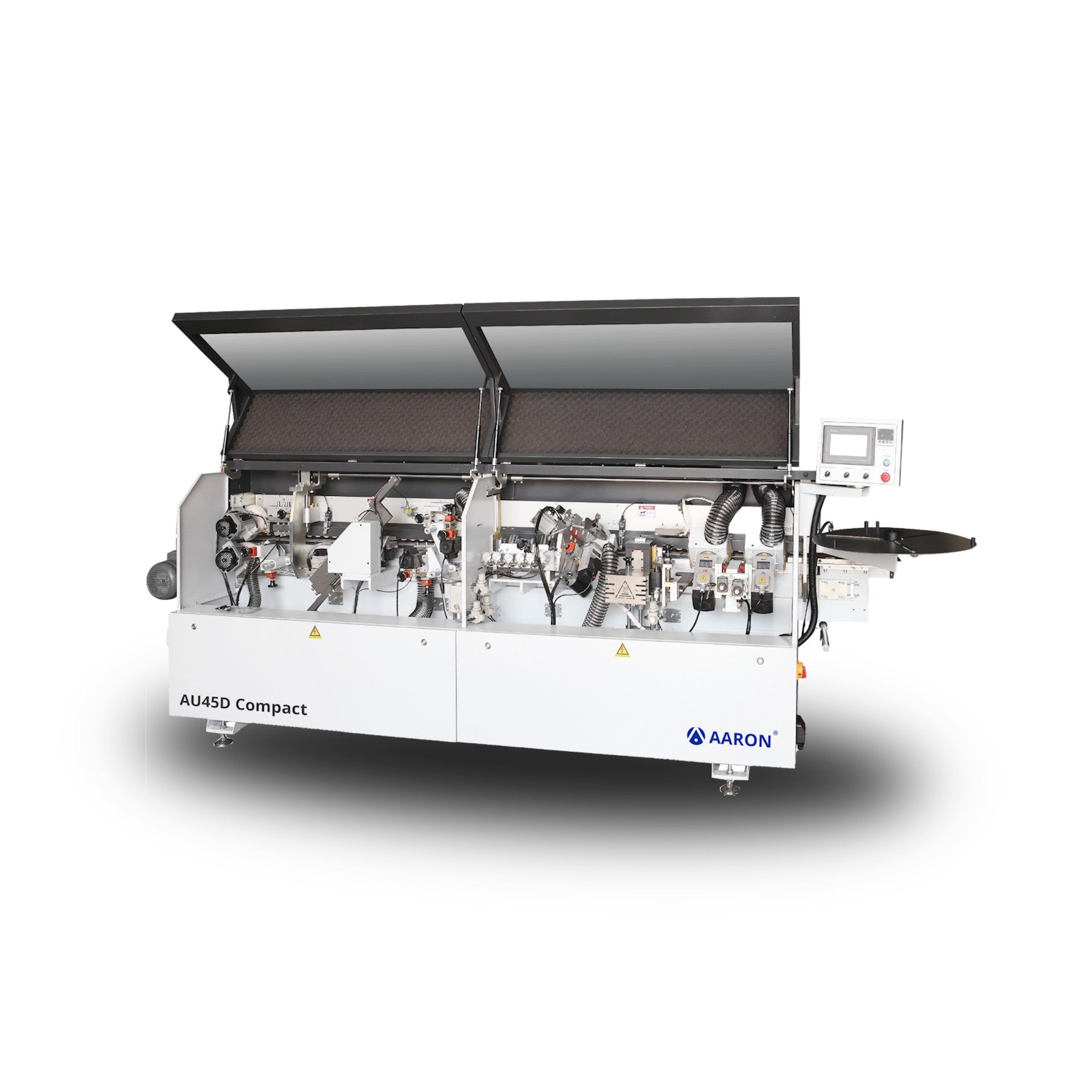

Aaron AU45D Compact - Compact Automatic 45° Edgebander

Aaron AU45D Compact - Compact Automatic 45° Edgebander

$35,200.00
$35,200.00
Sale Sold out
Taxes included.

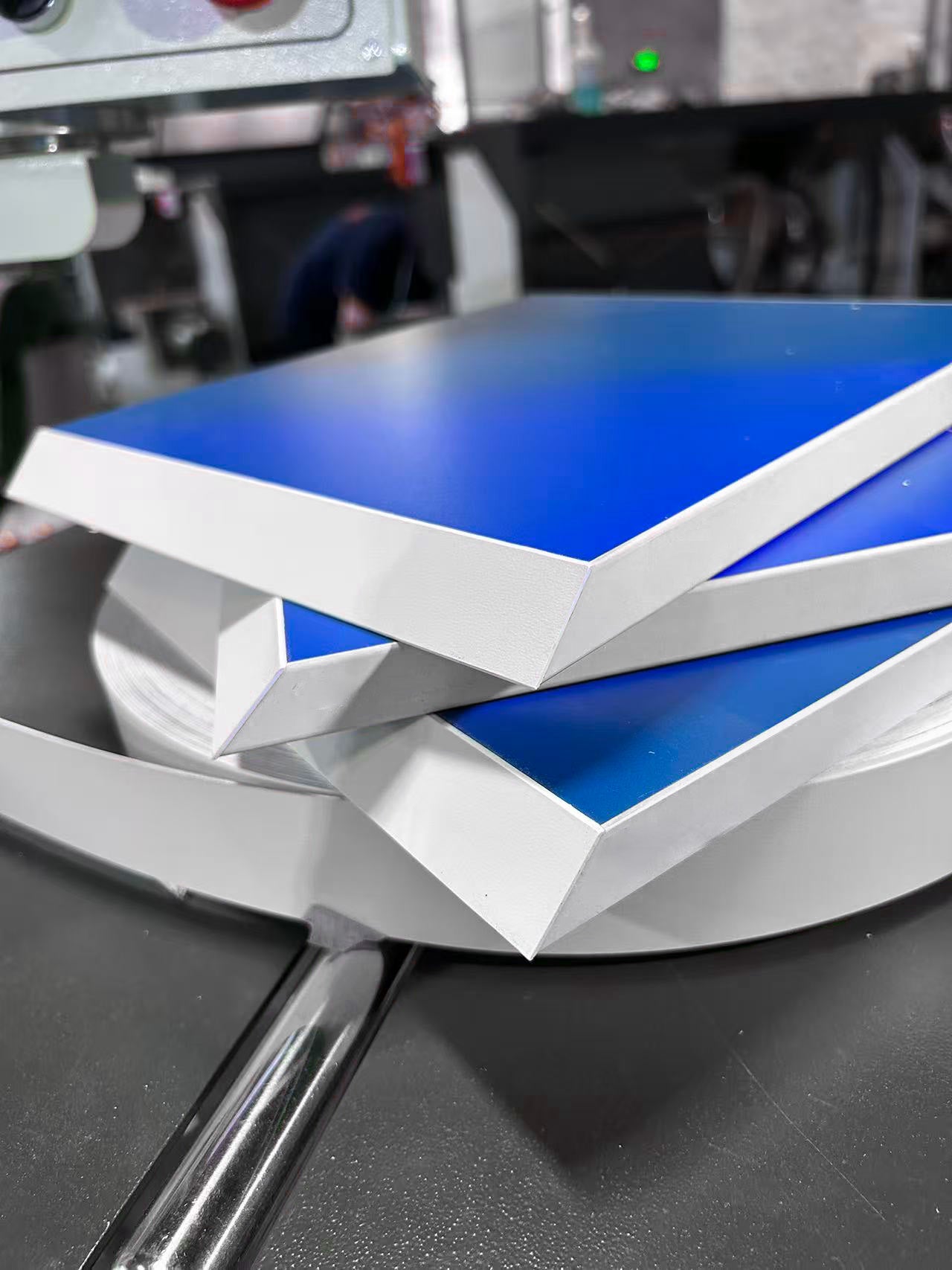

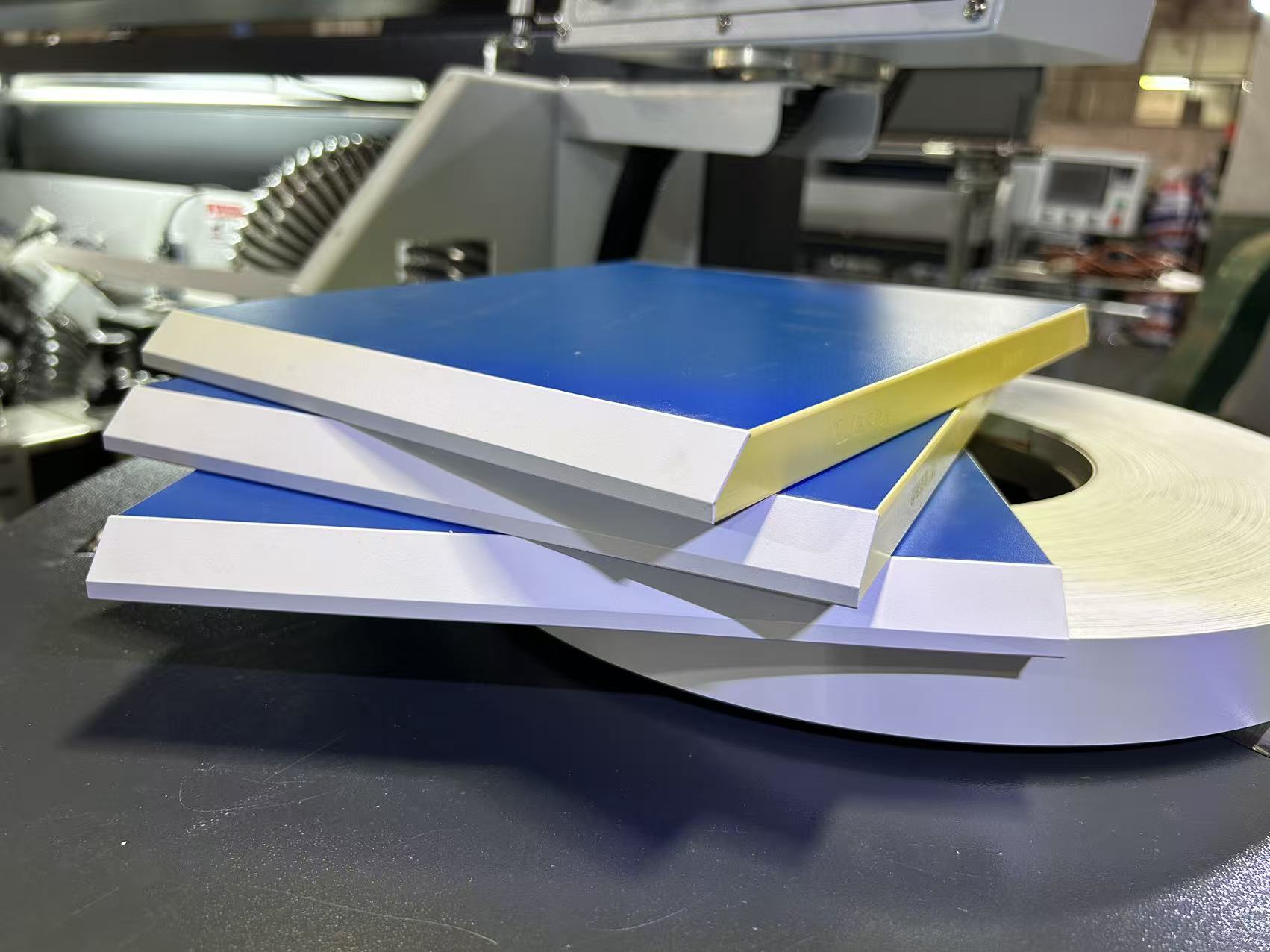

Brand new Aaron AU45D Compact; only 3.8m long! Shark nose edgebanding for all cabinet-making shops in a compact and affordable machine!

Dimensions: 3750 x 650 x 1540 mm (L x D x H)

Operations:

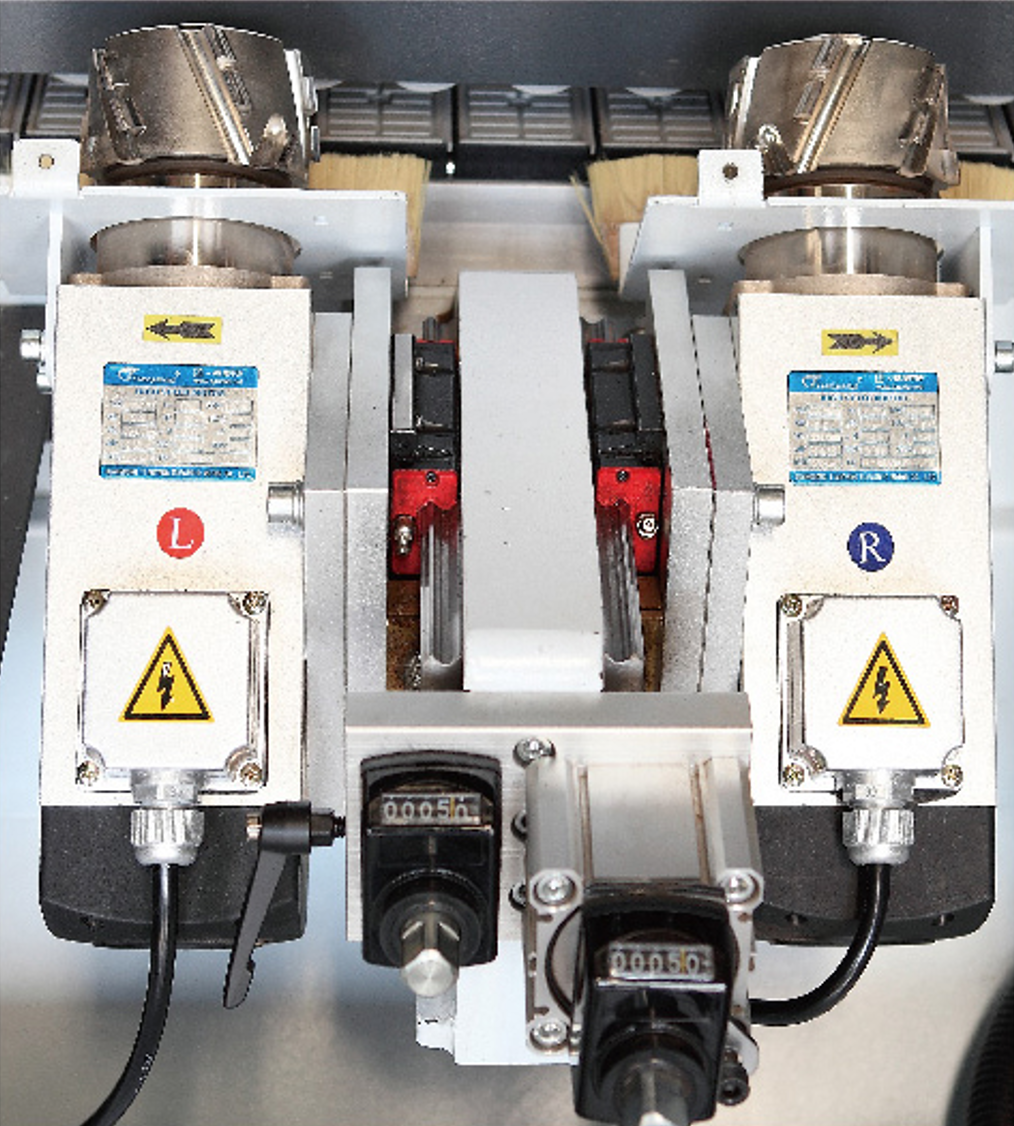

  • 45-degree milling

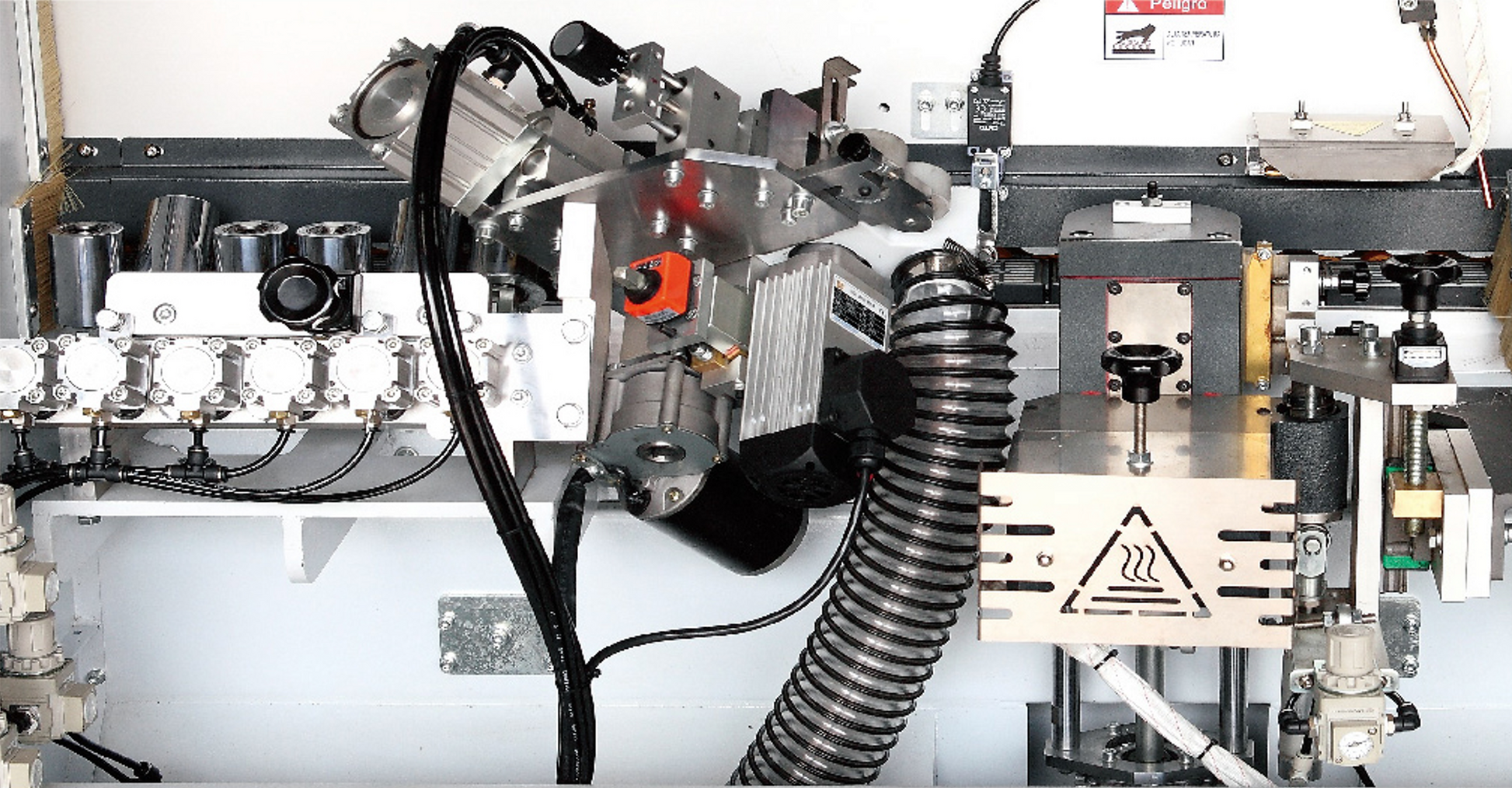

  • Gluing
  • End trimming
  • Fine trimming
  • Scraping
  • Buffing

 Specifications

Model Aaron AU45D Compact
Panel Length ≥200 mm
Panel Width ≥120 mm
Panel Thickness 15 - 25 mm
Edge Tape Thickness 0.8 - 2.0 mm
Feed Speed 9 m/min
Total Power 12.55 kW
Air Pressure 0.6 - 0.8 MPa
Weight 8800 kg
Dimensions 3750 x 650 x 1540 mm



Edge your finger-pull doors and drawers at Arborwood Machinery Hoppers Crossing (VIC) or Smithfield (NSW).
