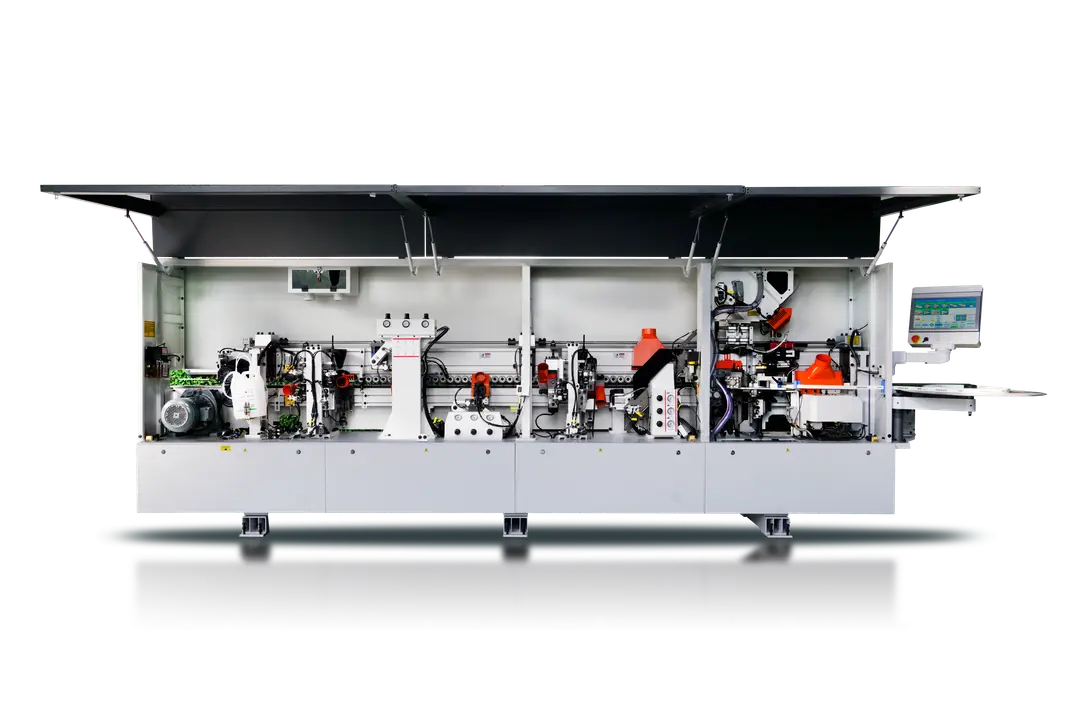

Aaron ALIGN Pro - Full-Featured Edgebanding Workhorse

Engineered for Precision. Built for Performance.

Introducing the new and improved ALIGN Pro, a new standard in automatic edgebanding. Featuring an electronically-actuated pressure beam lift and a one‑touch quick‑change system for notch edging, this machine delivers seamless changeovers and unparalleled application flexibility. The integrated intelligent hinge hole avoidance system ensures flawless results, even on complex panel geometries.

At the heart of the machine is a 15.6‑inch industrial touch control interface, offering real‑time process monitoring and intuitive operation. From pre‑milling to glue application, end trimming to buffing, every stage is executed with consistent stability and high‑efficiency output.

Built on a fully-welded, heavy‑duty steel frame, this edgebander is engineered for the rigours of continuous production. For demanding panel processing applications, it delivers the perfect balance of rigidity, intelligence, and long‑term reliability.

ALIGN Pro Key Features

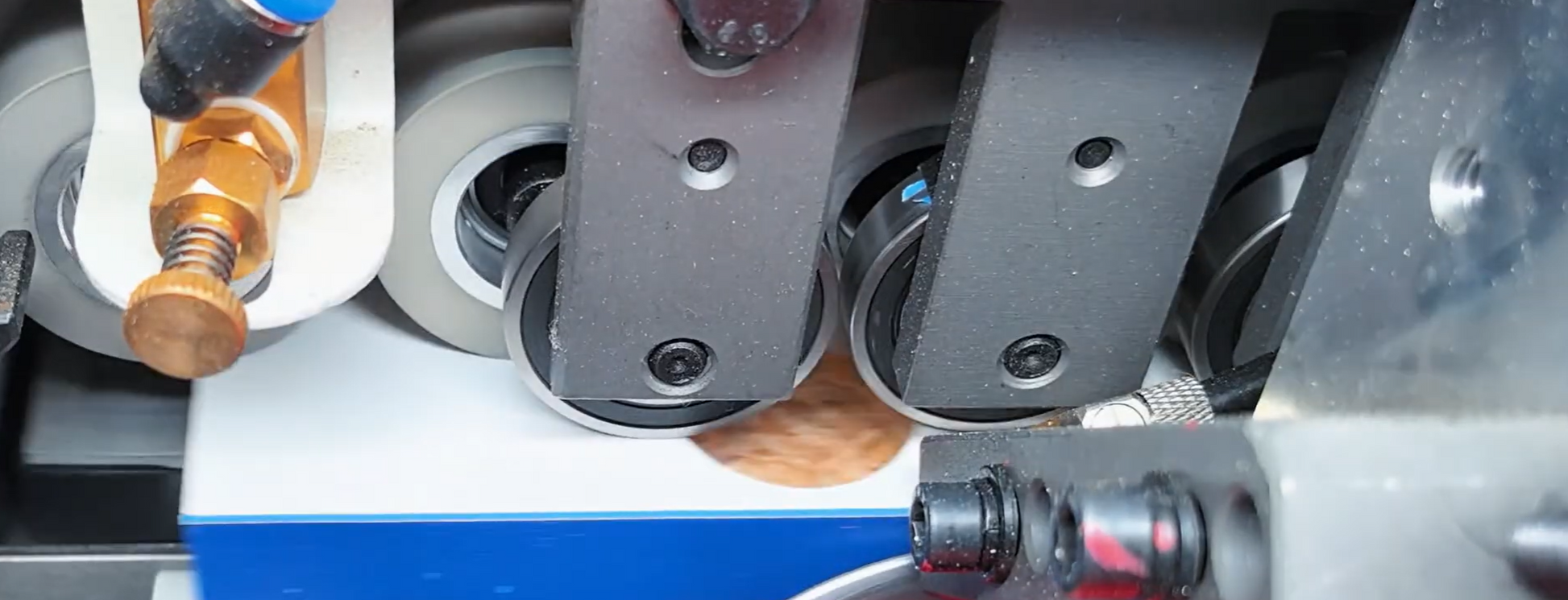

• Hinge hole bridging system
• Quick-melt and quick-changing glue pot system
• Easy-to-use 15.6-inch industrial touch screen interface

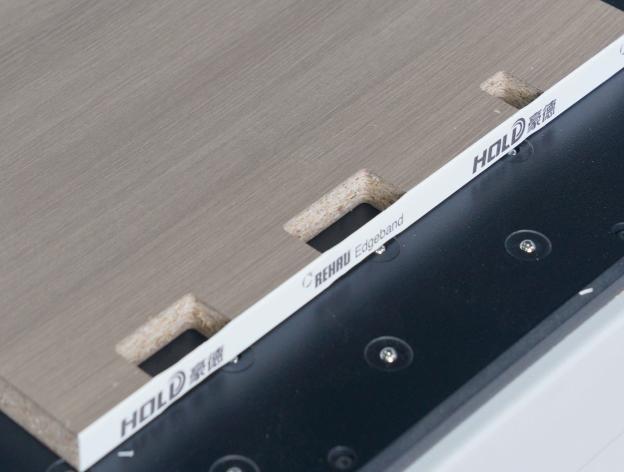

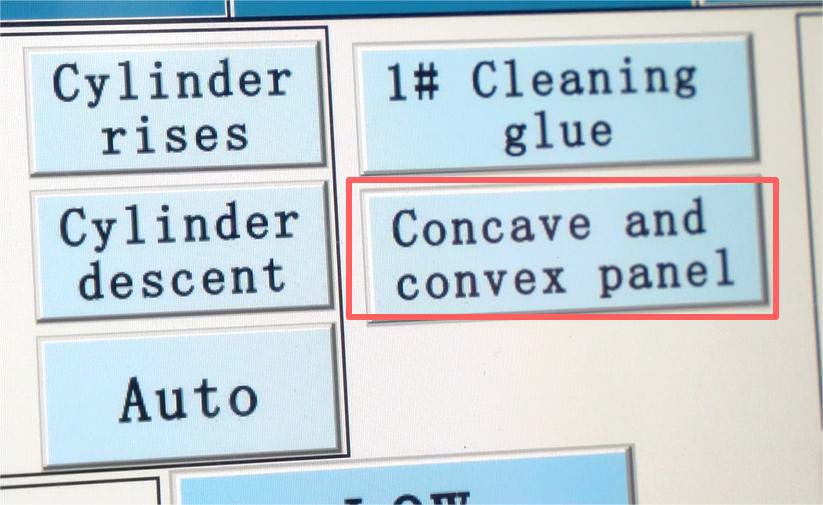

• Rebated panel-friendly for notches, cutouts and mouse holes
• Tape infeed alarm
• Diamond 65 mm pre-milling cutters
• Cleaning and release cleaning units
• Fully-welded, heavy-duty steel frame
• 14–20–23 m/min feed speed

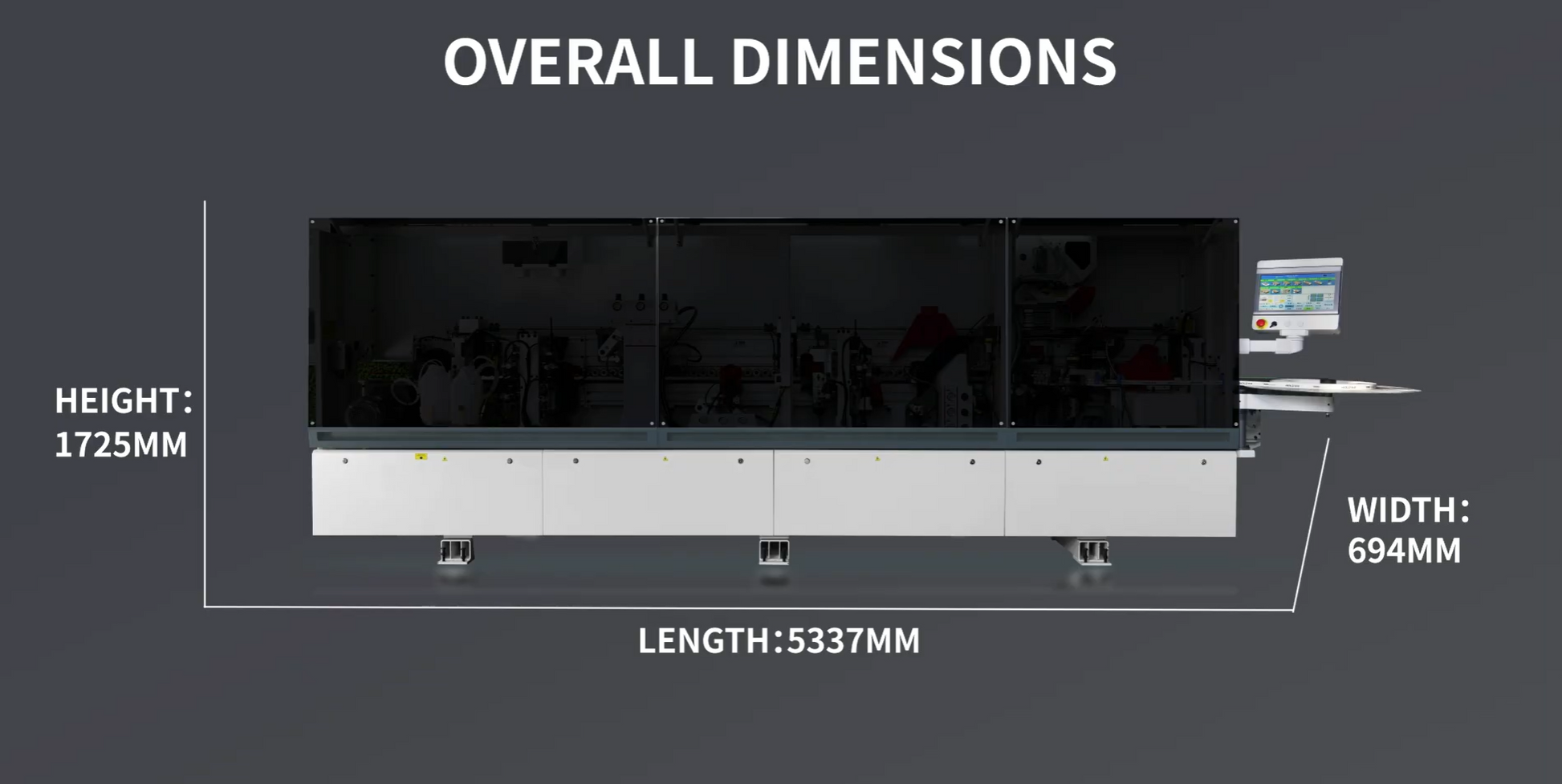

• 5.4 metre machine length

Intelligent Control System

• 15.6-inch touchscreen with user-friendly interface
• Real-time current and voltage display
• Intelligent I/O monitoring
• Inverter fault code display
• Automatic edge counting
• Smart inverter monitoring

Functions

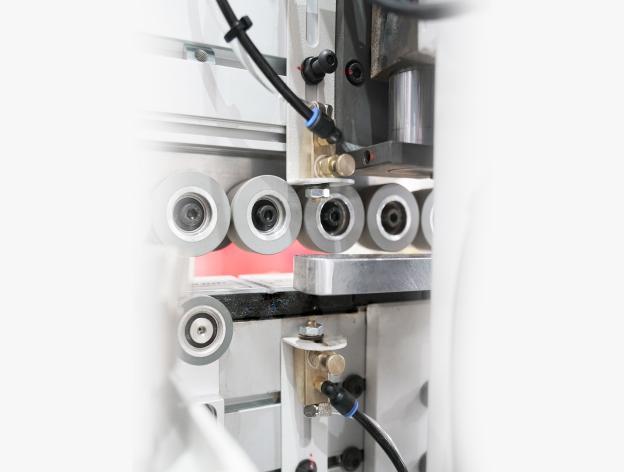

Separating Device

Prevents hot melt glue from contaminating the panel surface, delivering a consistently clean, residue‑free finish after gluing.

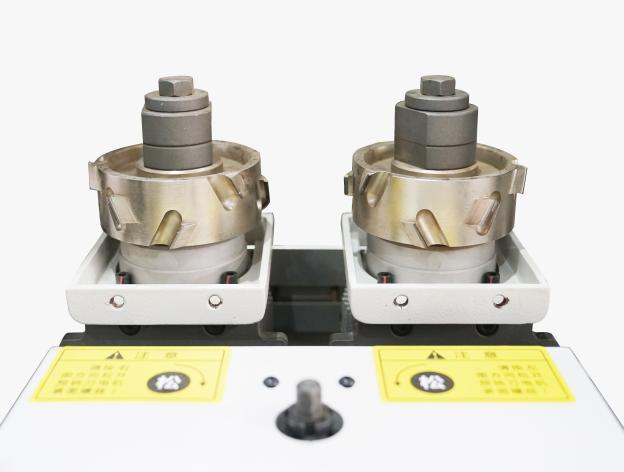

Pre-Milling Unit

Dual 65 mm diamond cutters eliminate surface defects and burrs along the panel edge, creating the ideal substrate for superior edge banding adhesion and finish quality.

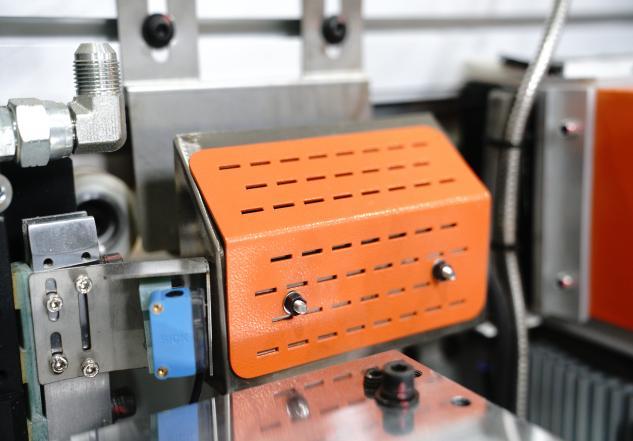

Panel Pre-heating Unit

Preheats the gluing surface in low‑temperature environments, significantly improving adhesive bond strength for reliable performance in all conditions.

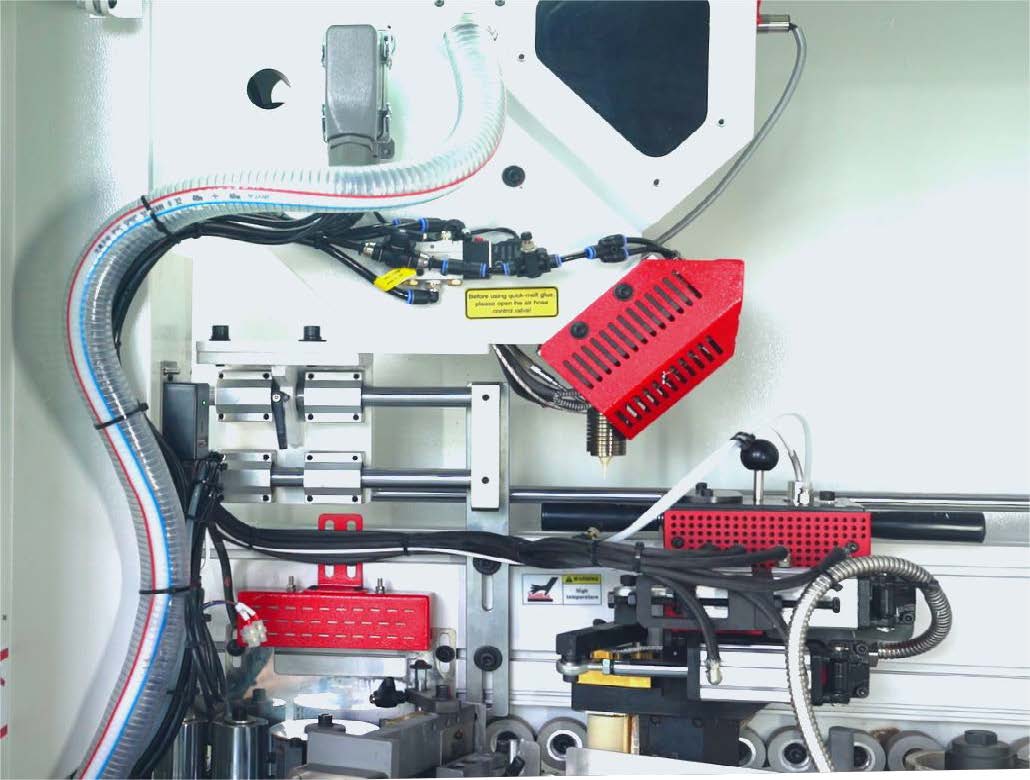

Fast-Melting Gluing System

Features an upper glue pot coating system combined with automatic glue granule supply. Delivers precise, uniform glue application, stable operation, and rapid changeover between glue types for maximum productivity.

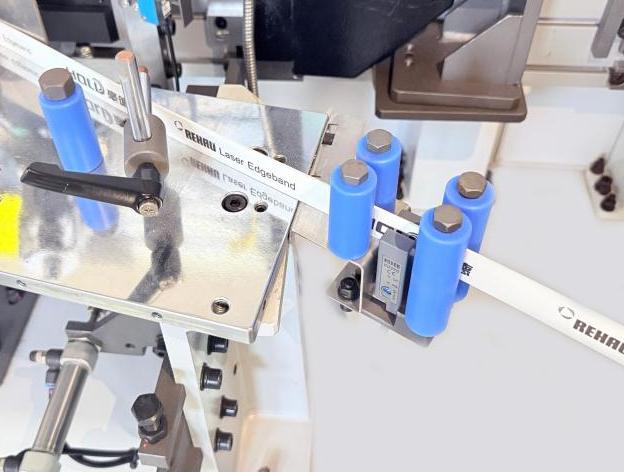

Tape In-feed Alarm Device

Monitors edge banding tape in real time and triggers an immediate alert when the tape runs out. Prevents costly production interruptions and eliminates the risk of incomplete edging defects.

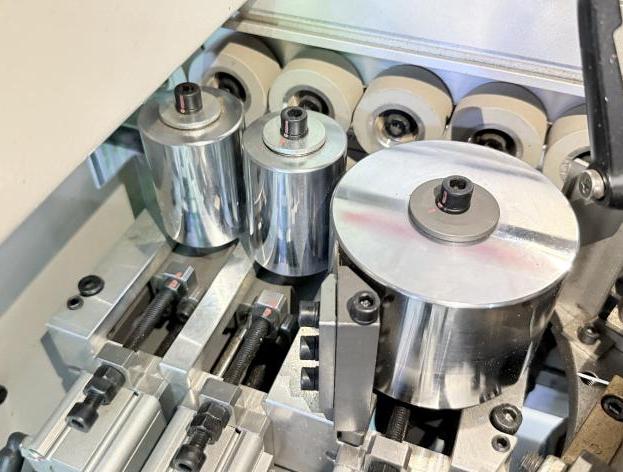

Pressing Unit

Each steel wheel is equipped with an integrated glue scraper for instant adhesive residue removal. Silicone wheels provide powerful, consistent pressing force for a permanent, void‑free bond.

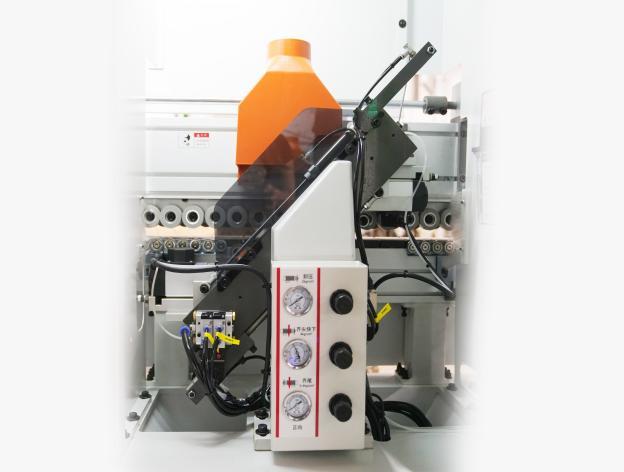

End Cutting Unit

Precision‑engineered with linear guide rails and sliders for exceptional accuracy and long‑term durability. An automatic lubrication system extends service life, while pneumatic positioning ensures clean, precise trimming even on short and thick panels.

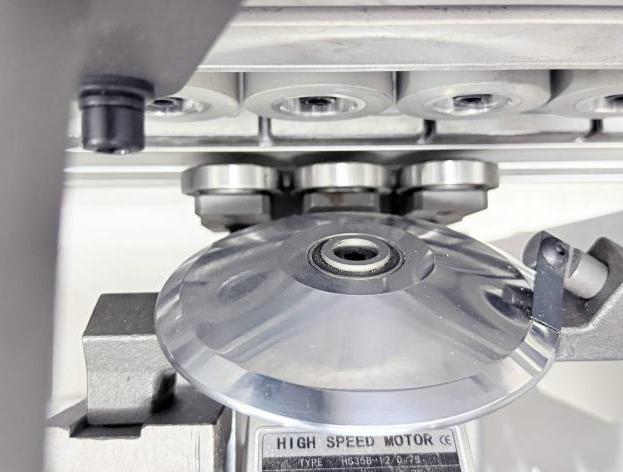

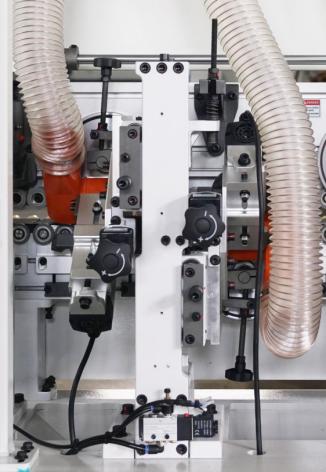

Pneumatic Fine Trimming

One‑key adjustment via the touchscreen interface. Features integrated hinge hole avoidance (compatible with 35mm hinge holes). Trims excess edge tape into a smooth R‑shaped arc, leaving a seamless, flush finish perfectly aligned with the panel surface.

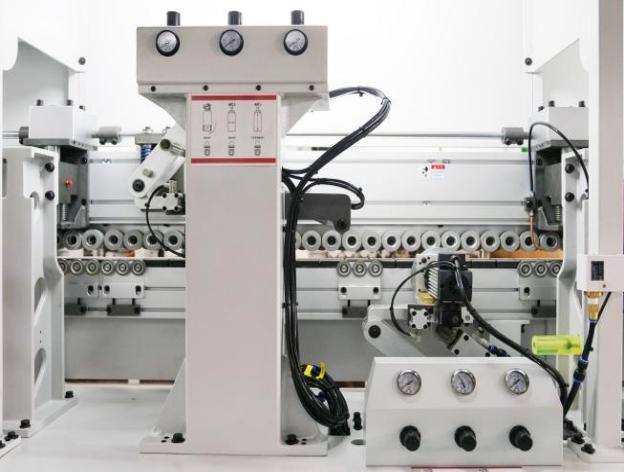

Corner Rounding

Profiles the four corners of the panel with precision, creating a refined, safe, and aesthetically pleasing edge detail.

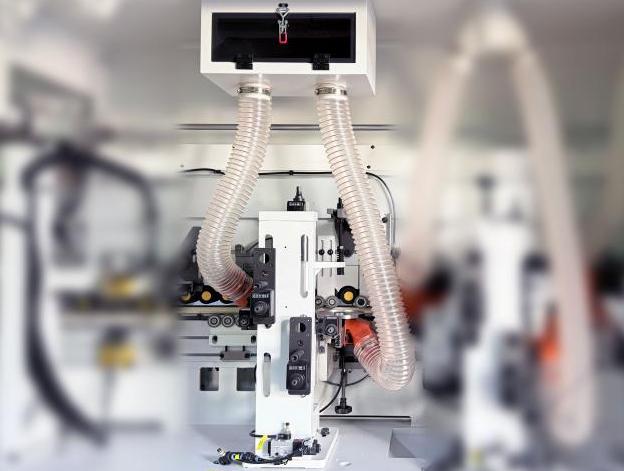

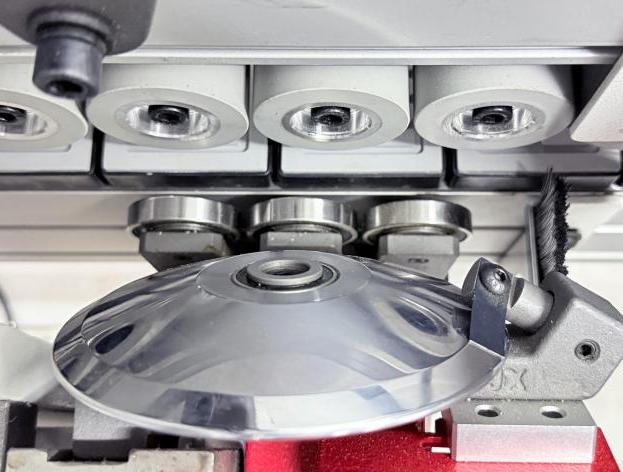

Pneumatic Scraping

Independent scraping unit with pneumatic adjustment and screen‑controlled quick changeover. Includes hinge hole avoidance functionality. Eliminates cutter marks and refines the R‑shaped radius left by fine trimming, delivering a perfectly smooth, flawless surface.

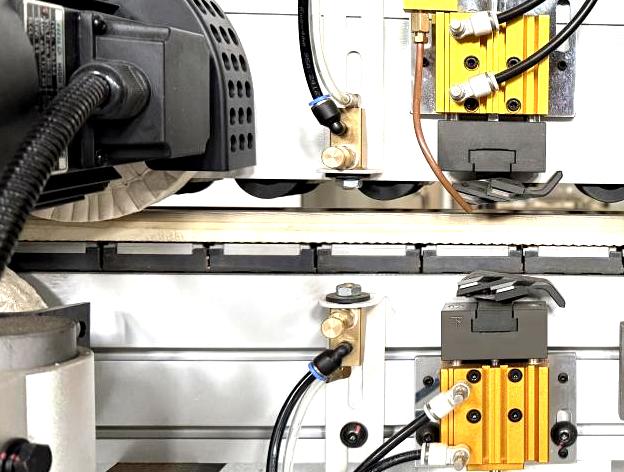

Flexible Flat Scraping

Upper flat scraping employs a three‑axis cylinder for superior adaptability, lower flat scraping features hinge hole avoidance. Effectively removes residual hot melt adhesive from the panel surface, ensuring a clean, professional finish.

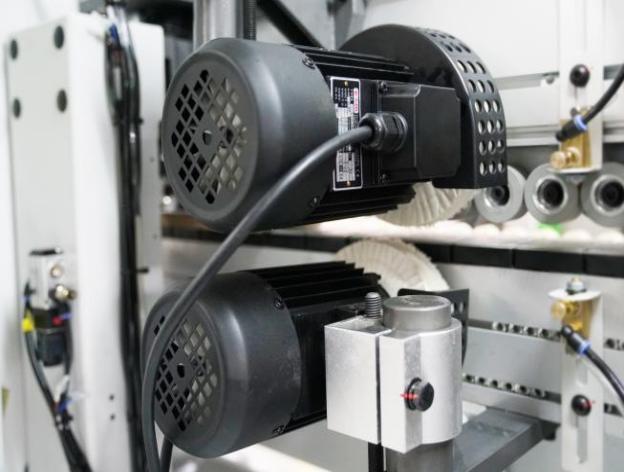

Buffing Unit

Removes adhesive residue and polishes both the edge band and panel surface to a smooth, uniform sheen for a premium, ready‑to‑ship appearance.

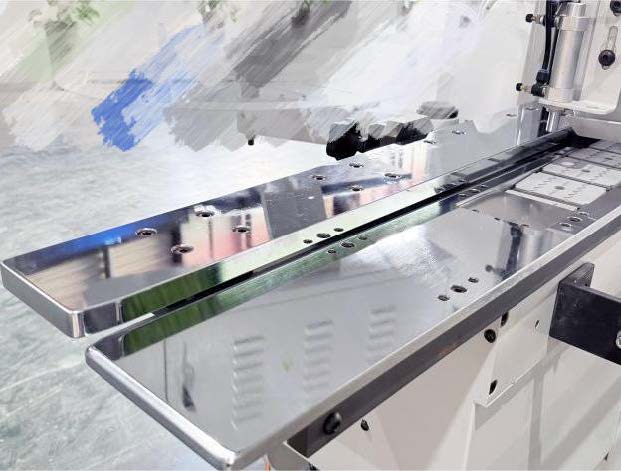

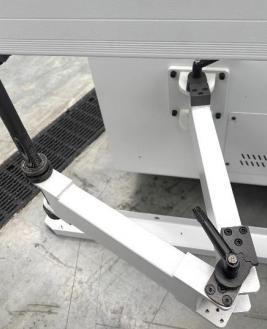

Rocker Type Extendable Fluency Track + Gear Motor

Engineered for stable, vibration‑free panel transport. Supports high‑speed continuous operation with exceptional reliability and consistent feeding performance.
