Aaron AU45D - Automatic 45° Edgebander
Aaron AU45D - Automatic 45° Edgebander
In stock. Delivering nationwide.

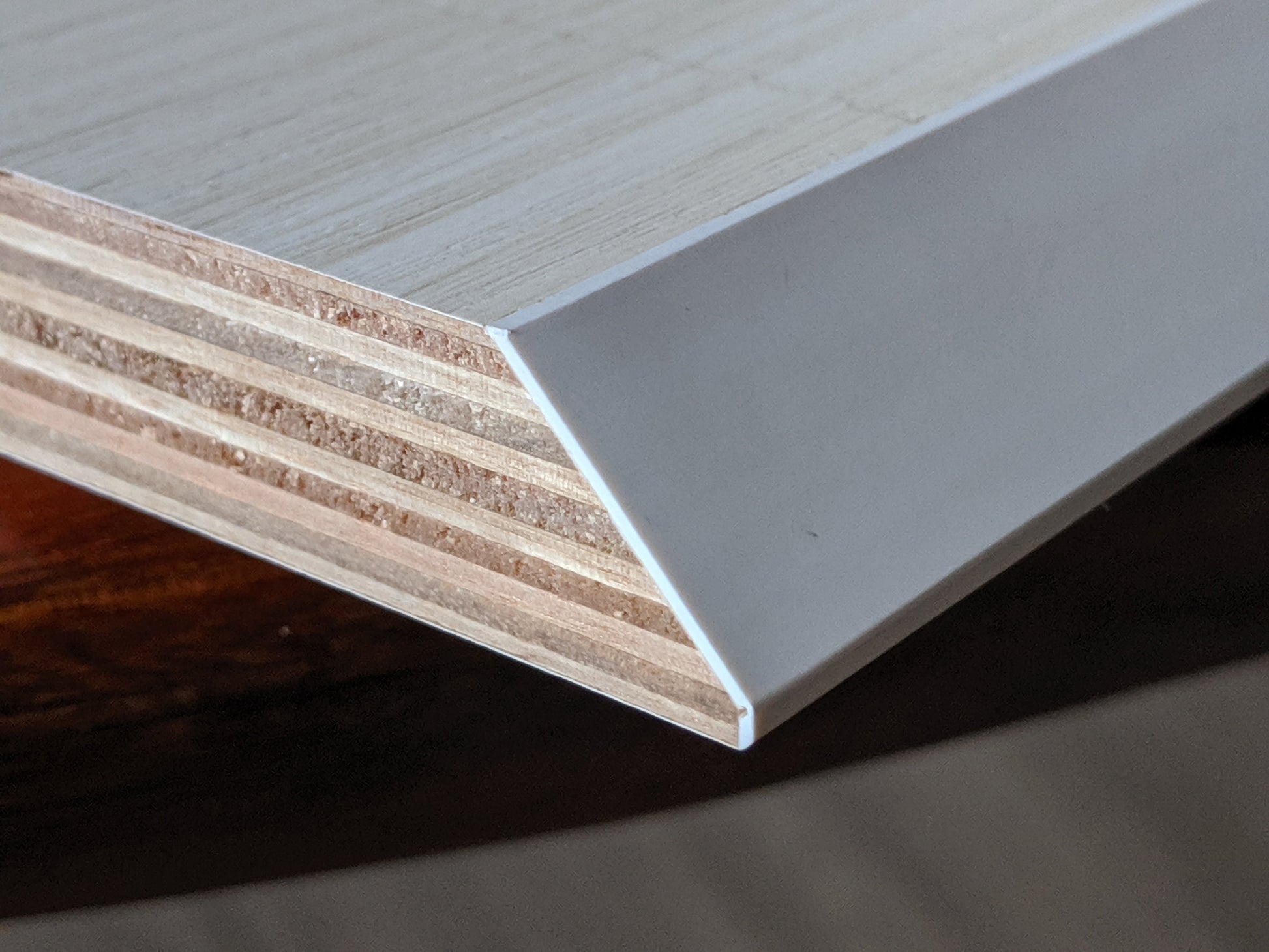

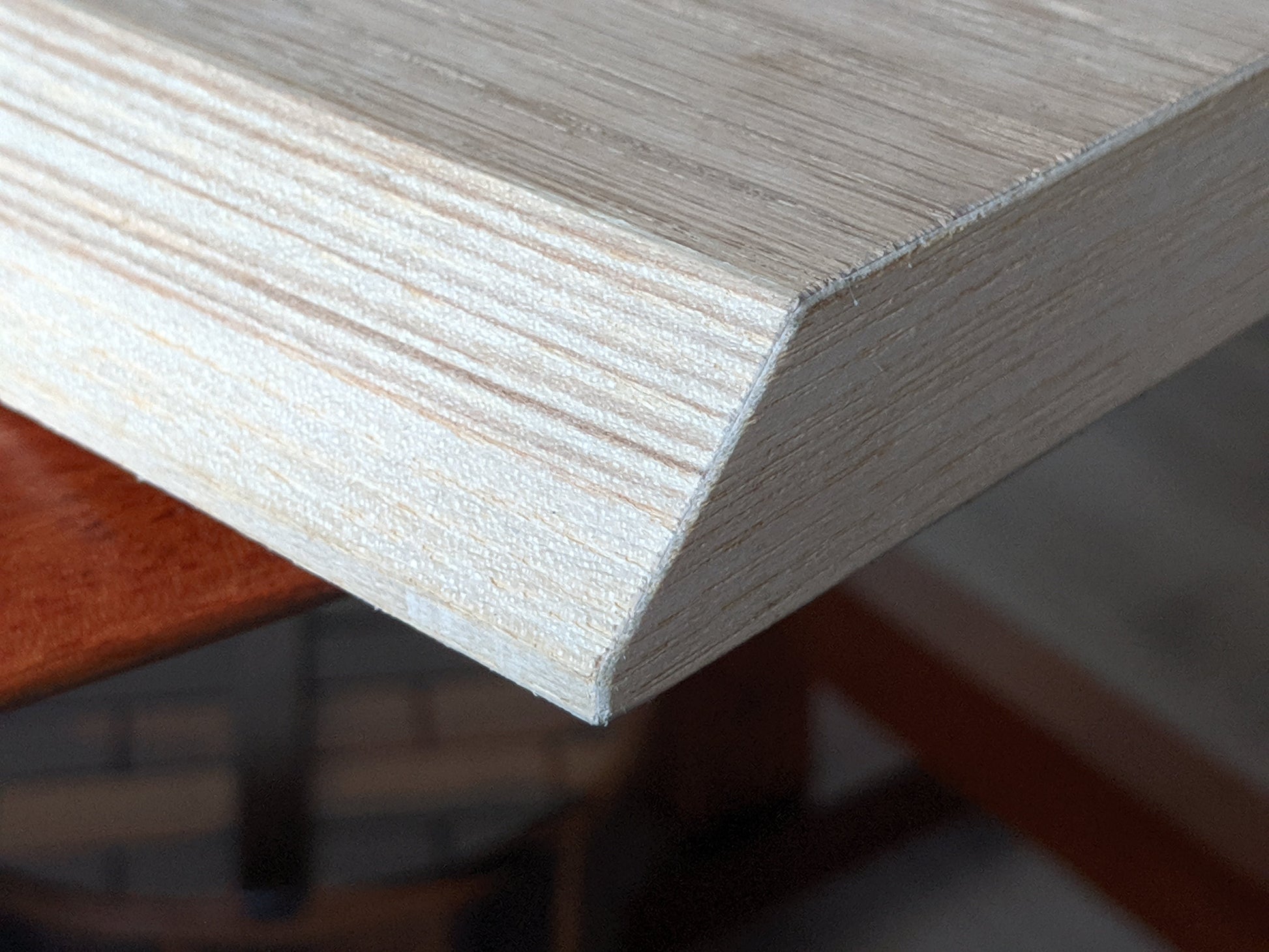

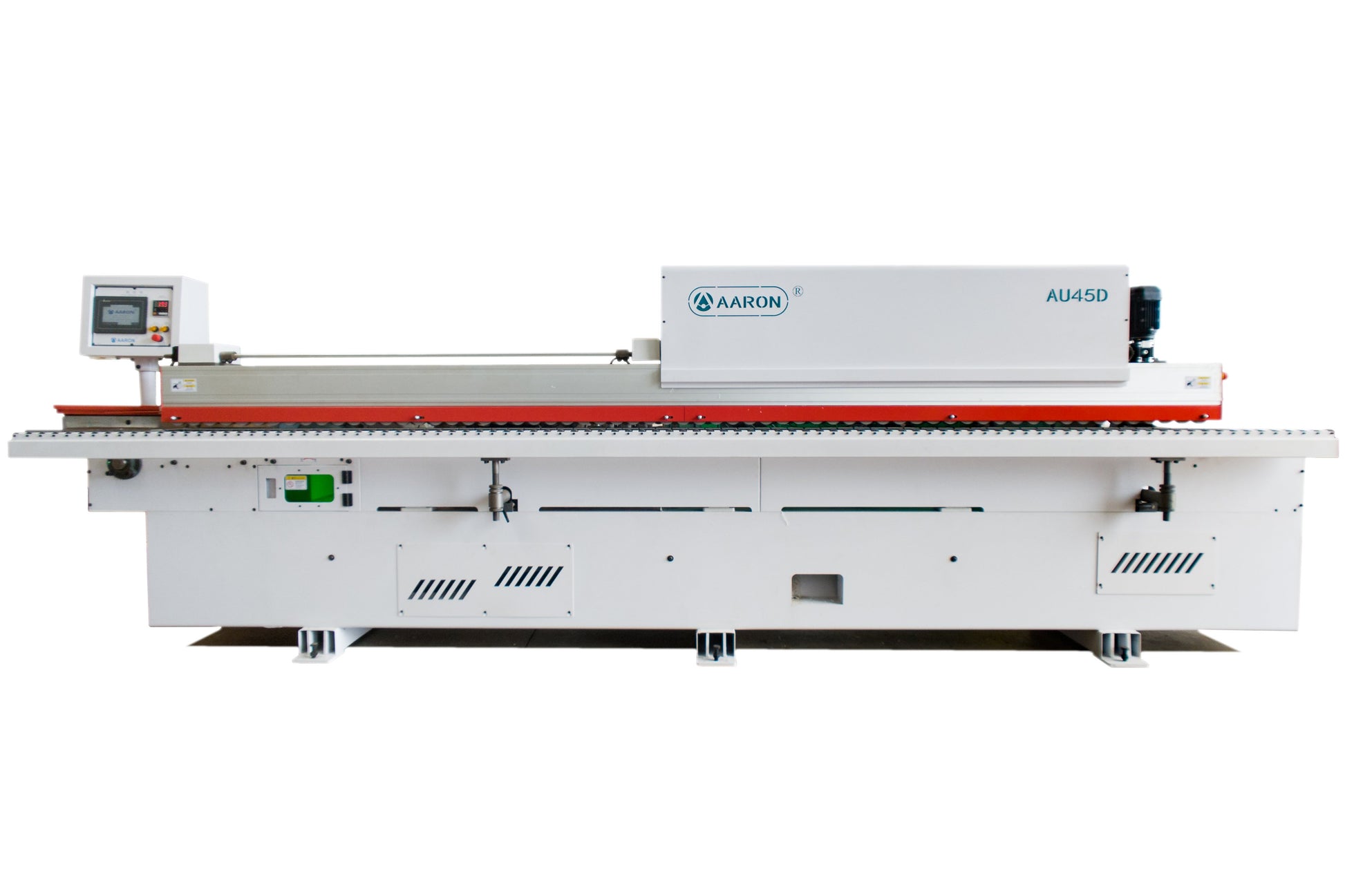

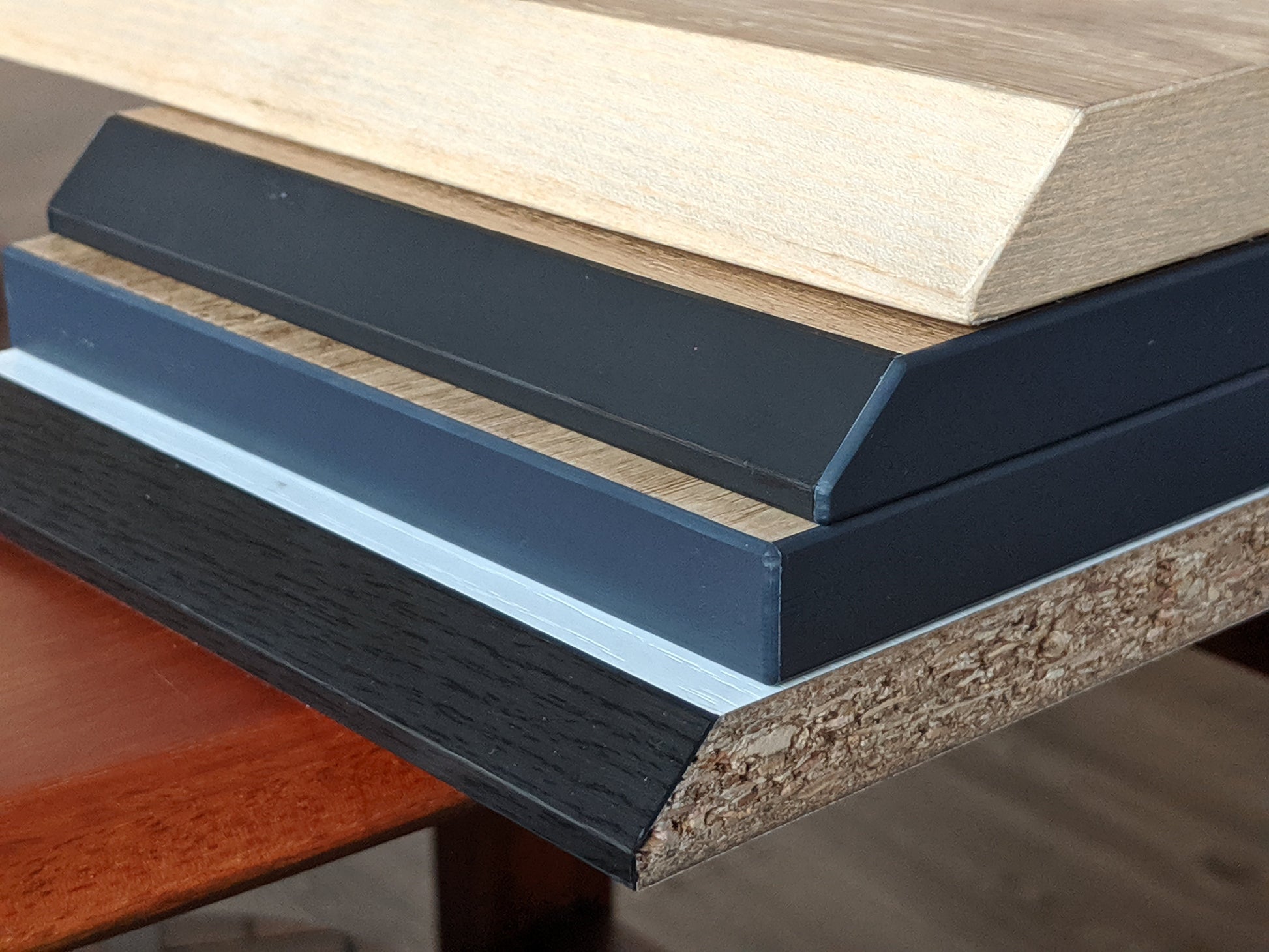

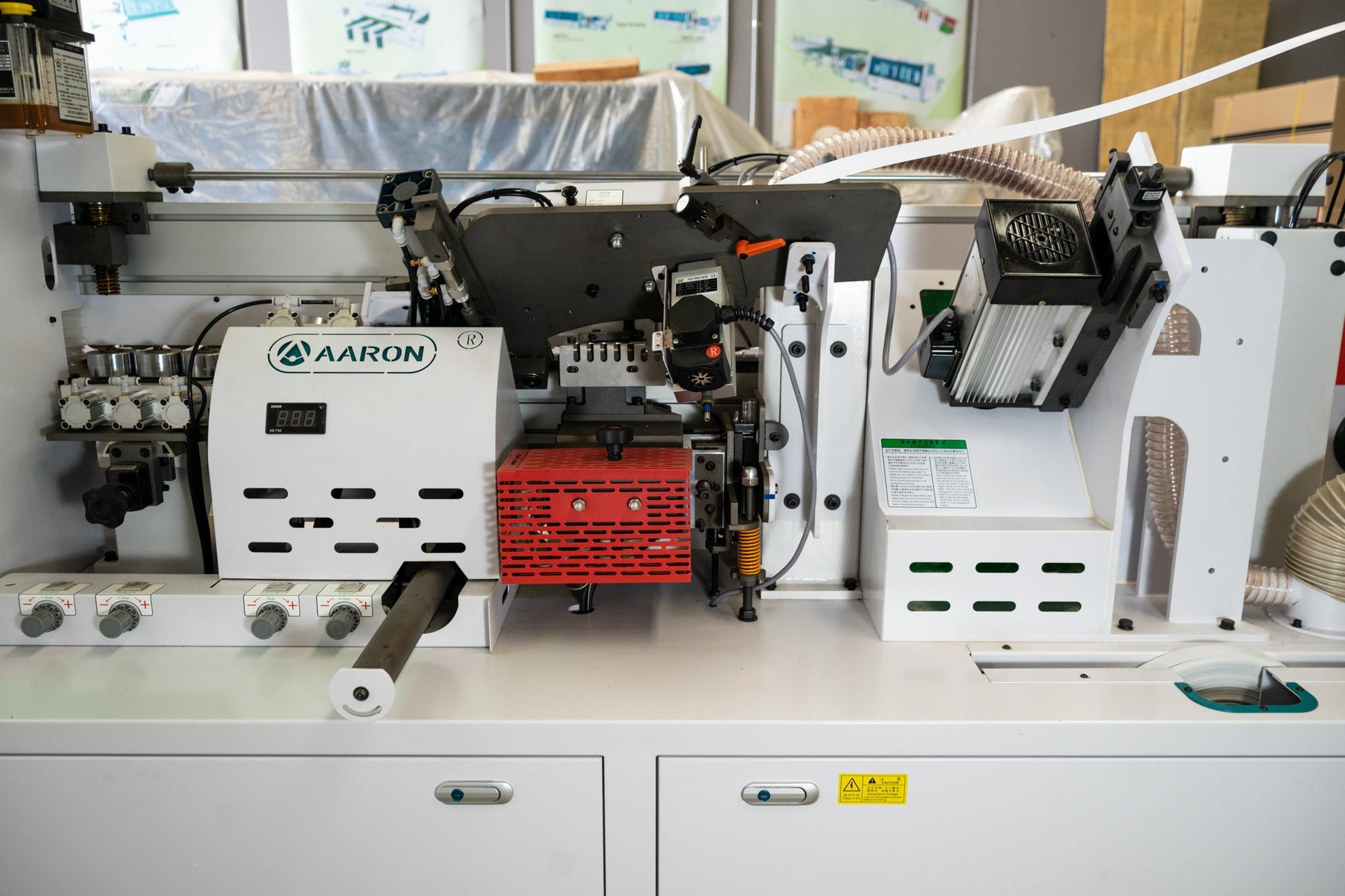

The Aaron AU45D provides an automatic edgebanding and end trimming solution for 45° inclined edges in one easy-to-use machine. Create modern, handle-free doors and drawers efficiently and with repeatability with the AU45D.
With the convenience of a single glue pot and without the need for an external edge tape magazine, the AU45D provides a complete package in a space-optimised machine that is simple to adjust, tune and maintain. This is the perfect machine for handle-less, no-ware kitchen designs.
Operations:

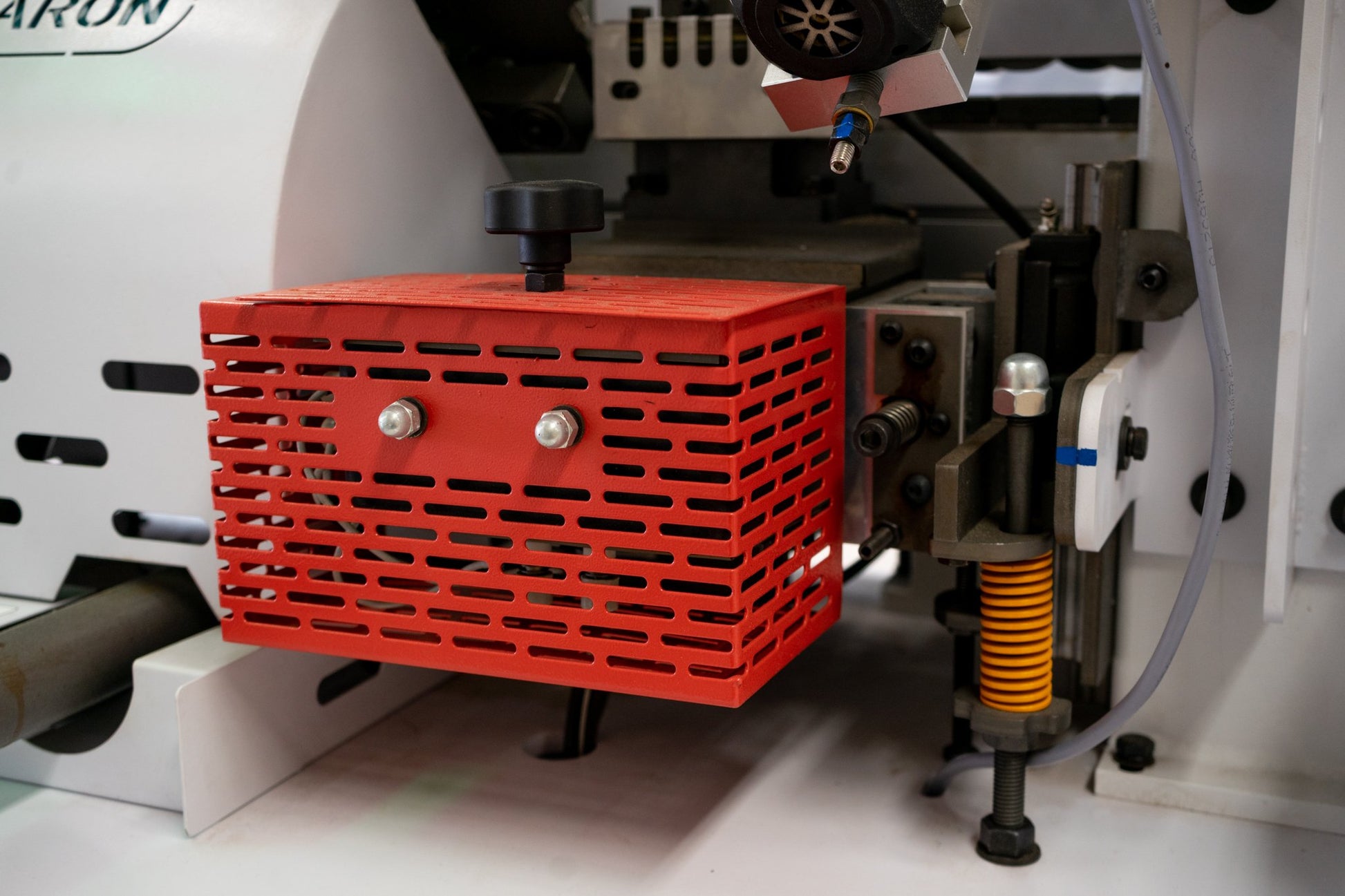

- Gluing

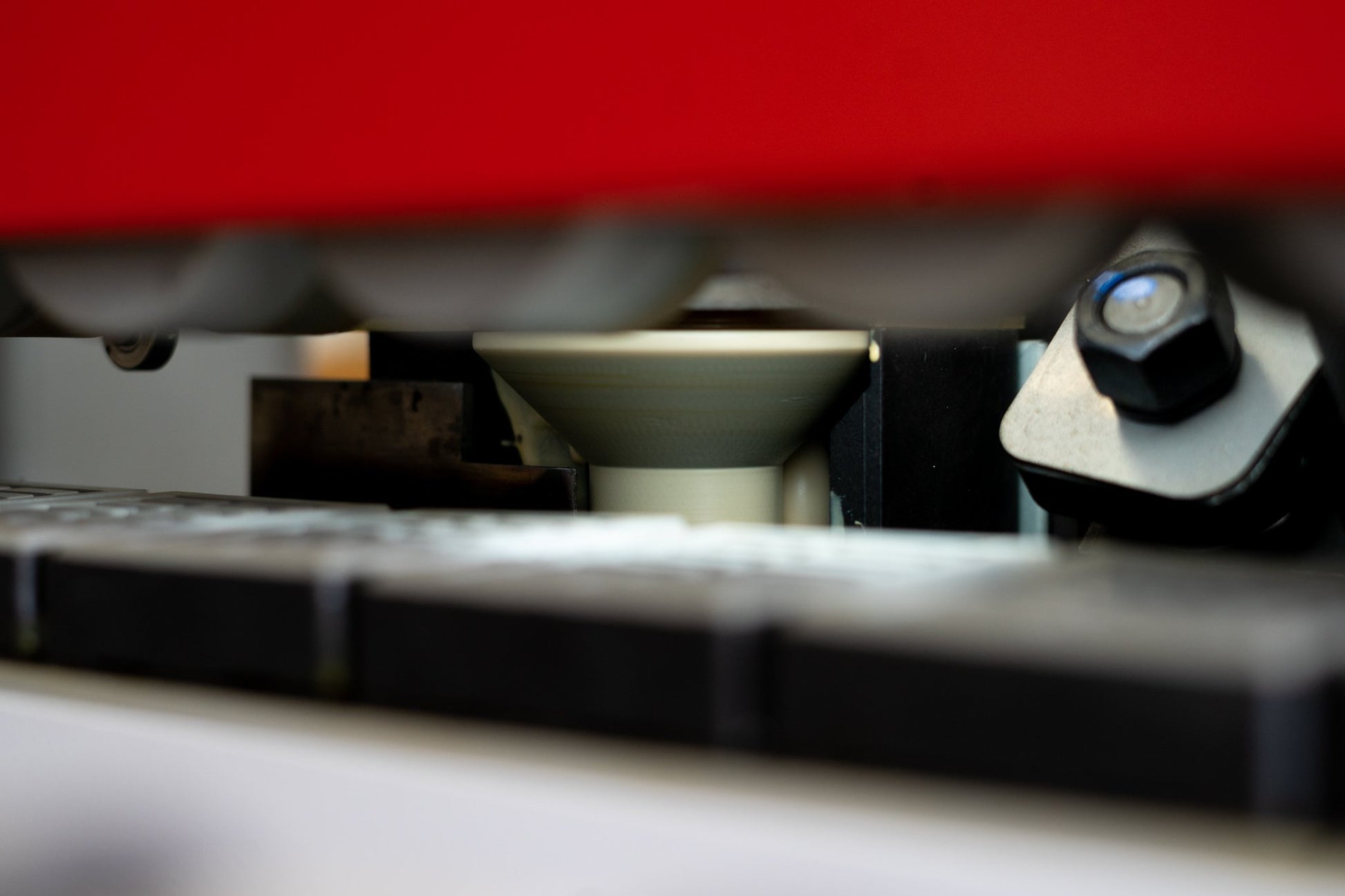

- 45-degree milling
- Fine trimming

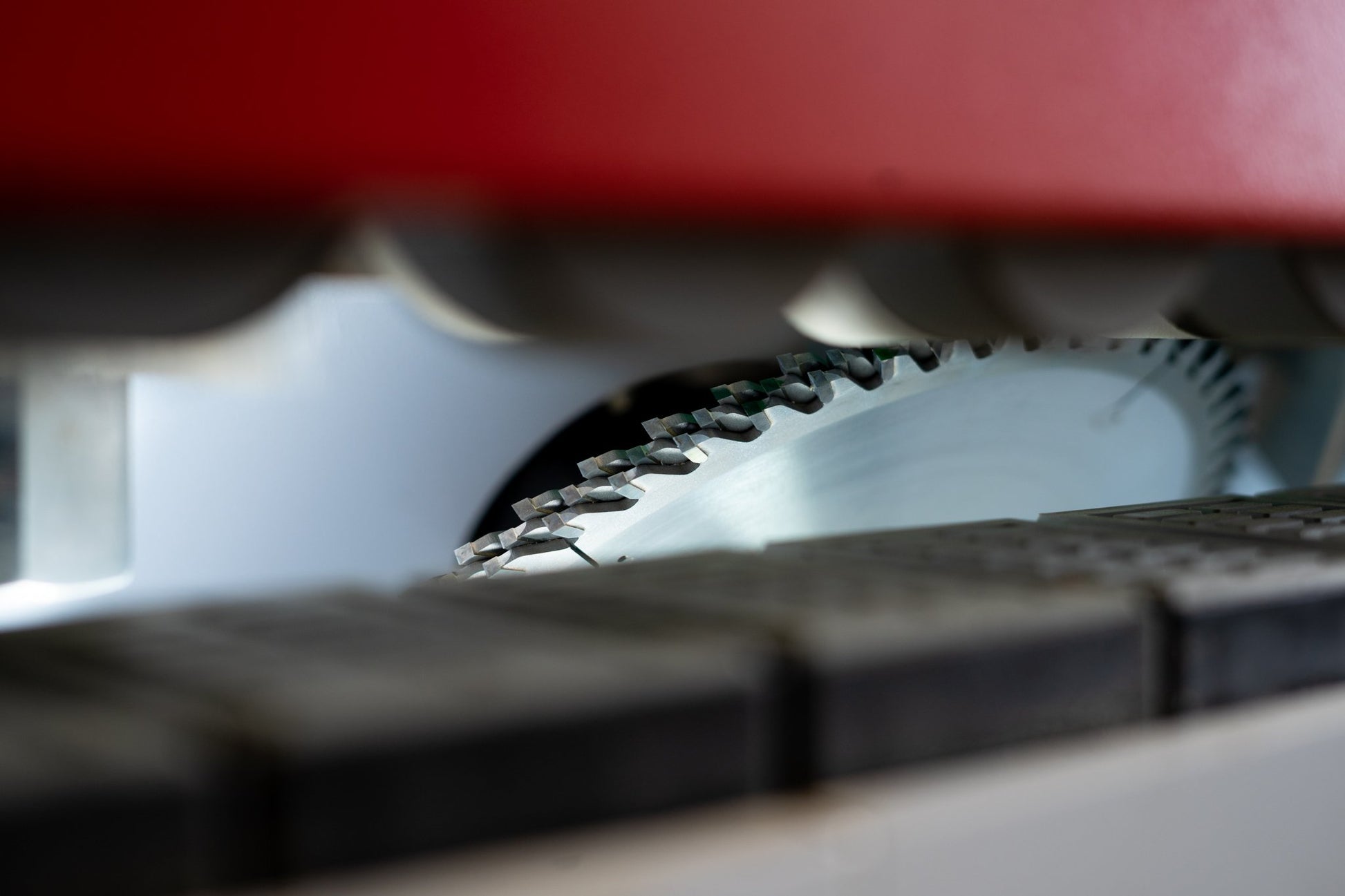

- End trimming
- Scraping

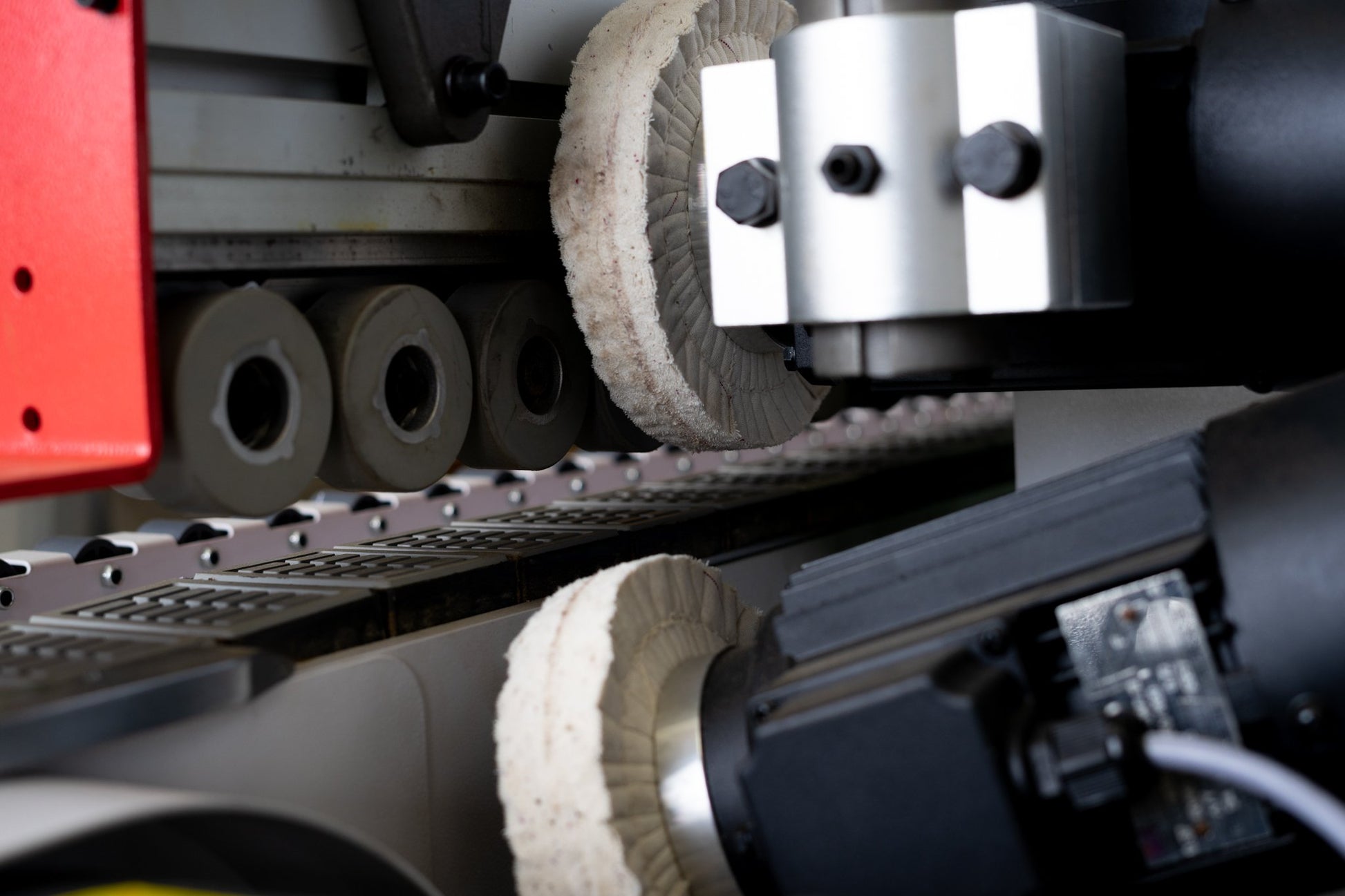

- Buffing
Specifications
Model | Aaron AU45D |
---|---|
Panel Length | ≥200 mm |
Panel Width | ≥120 mm |
Panel Thickness | 12 - 25 mm |
Edge Tape Thickness | 0.8 - 1.5 mm |
Feed Speed | 13 m/min |
Total Power | 13 kW |
Air Pressure | 0.65 MPa |
Weight | 1,500 kg |
Dimensions | 4900 x 900 x 1600 mm |
