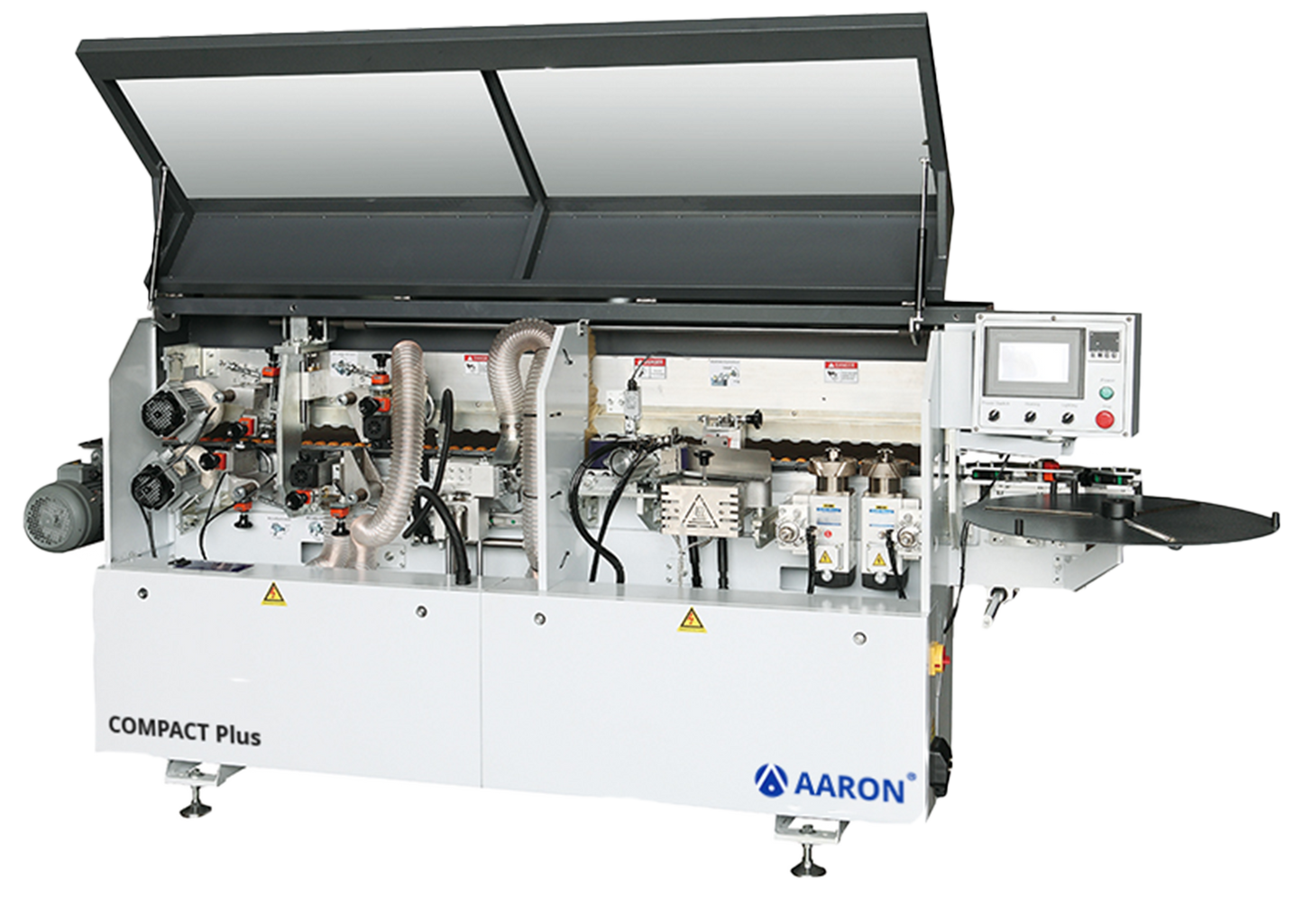

Aaron Compact Plus Edgebander - Automatic Pre-milling Edge Banding Machine

Aaron Compact Plus Edgebander - Automatic Pre-milling Edge Banding Machine

Regular price $27,500.00
Regular price Sale price $27,500.00
Sale Sold out
Taxes included.

With a length of only 2.85 metres, this solid, compact pre-milling edge banding machine is perfect for Aussie workshops where space is a premium.

Need corner rounding? See the Compact Pro Edgebander.
Looking for something a little smaller? See the Compact Edgebander.

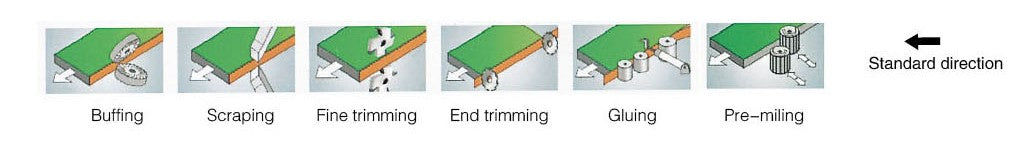

COMPACT Plus Functions

Pre-milling - Gluing - End cutting - Fine trimming - Scraping - Buffing

Technical Data

Edge thickness 0.4–3.0 mm  Min panel width 120 mm
Working voltage 3-Phase 415V Min panel length 150 mm
Air pressure >0.6 MPa Panel thickness 10–50 mm
Feeding speed 9 m/min Total power 10.9 kW
Overall dimensions 2850(L)×536(W)×1316(H) mm Net weight 620 kg
