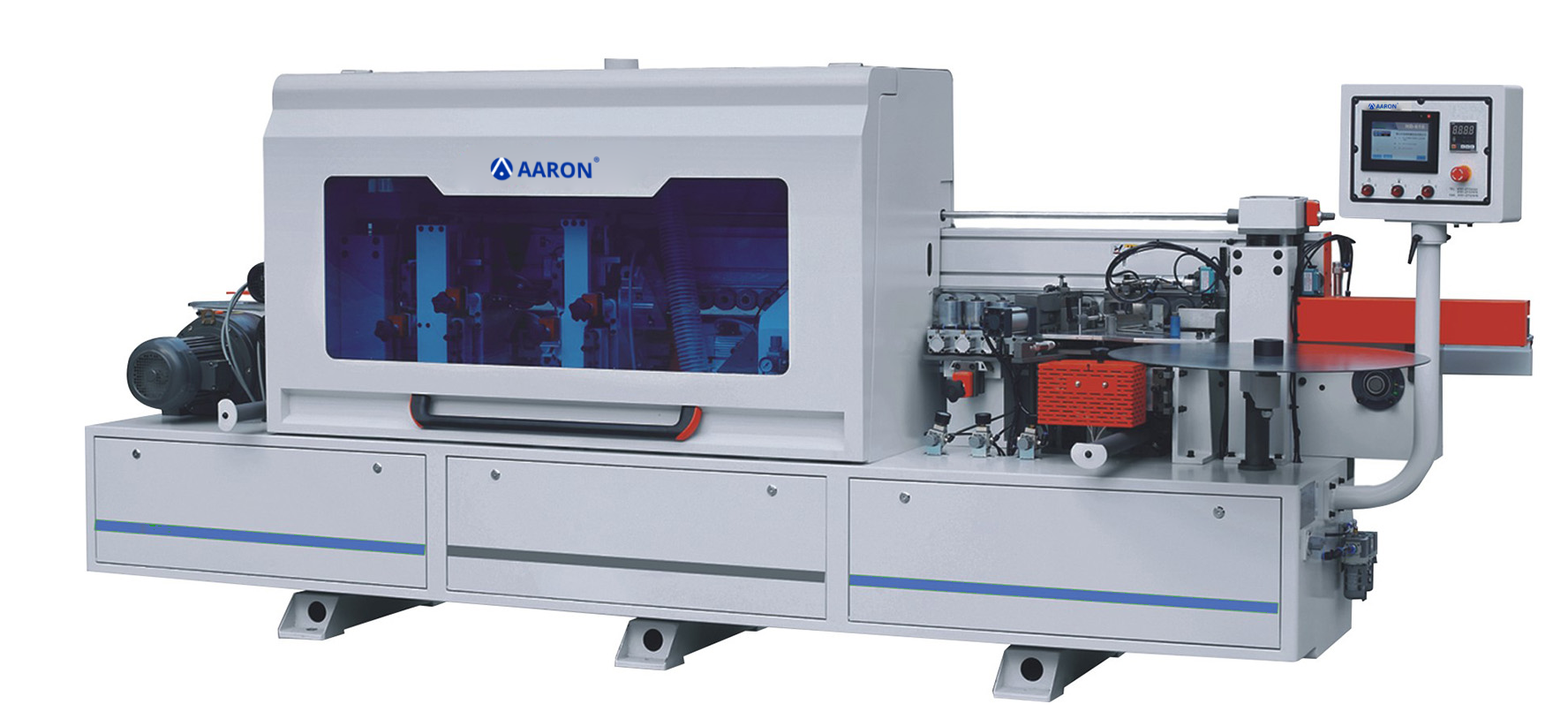

Aaron ALIGN - Automatic Standard Edgebander (EB42)

Aaron ALIGN - Automatic Standard Edgebander (EB42)

$30,525.00
$30,525.00
Sale Sold out
Taxes included.

The Aaron EB42 Automatic Standard Edgebander is a durable and efficient solution designed for precision edgebanding in woodworking shops of all sizes. Constructed with a high-strength structural steel frame, this machine ensures stability and longevity while delivering professional-grade results with ease.

Key Features

  • Heavy-Duty Steel Platform – High-strength structural steel for long-lasting stability, with rust prevention and high-temperature baked paint finish.
  • Electric Beam Lifting – Reduces labour intensity while enhancing efficiency and accuracy.

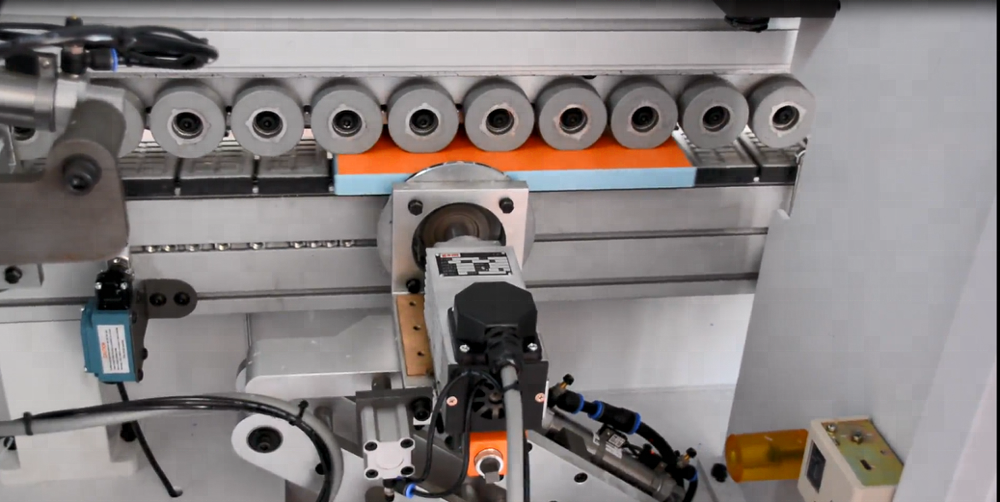

  • Oversized Pressing Wheels – Four large-diameter wheels with four cylinders ensure tight and secure edge sealing.
  • User-Friendly Adjustment Mechanisms – Intuitive meters allow for precise and easy operation.
  • High-Precision Linear Guide System – Guarantees smooth, accurate alignment for consistent results.

The Aaron EB42 is the ideal entry-level automatic edgebander, combining strength, precision, and ease of use. Whether you’re handling small-batch production or high-volume jobs, this machine ensures seamless edge application with minimal manual intervention—a cost-effective solution for improving productivity in your workshop.

Specifications

 Model Aaron EB42
Panel Thickness 10 to 60 mm
Panel Width ≥100 mm
Edge Tape Thickness 0.4 - 3.0 mm
Feed Speed 14 to 23 m/min
Working Air Pressure 0.6 MPa
Dimensions (Length x Width x Height) 4070 x 900 x 1700 mm
Total Power 8.8 kW (3PH)


Alternatives

Need pre-milling and corner-rounding? View our Aaron EB62CM Pre-milling and Corner-Rounding Edgebander.

Just want corner-rounding? View our Aaron EB61C Automatic Corner-Rounding Edgebander.
