Aaron MJ-32TE - 3.2m Digital Precision Panel Saw

Sale price Price $17,200.00 Regular price Unit price  per

Tax included.

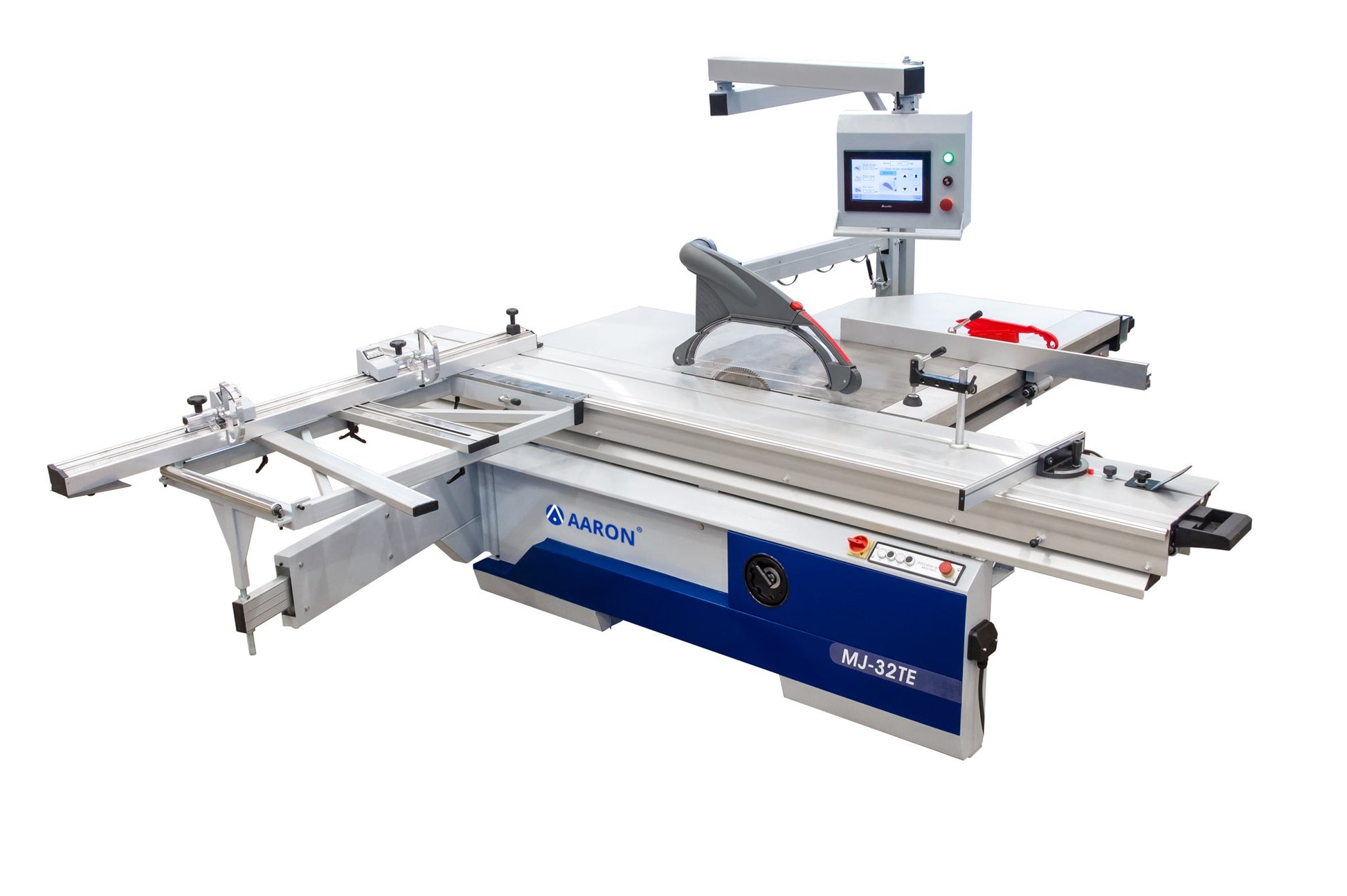

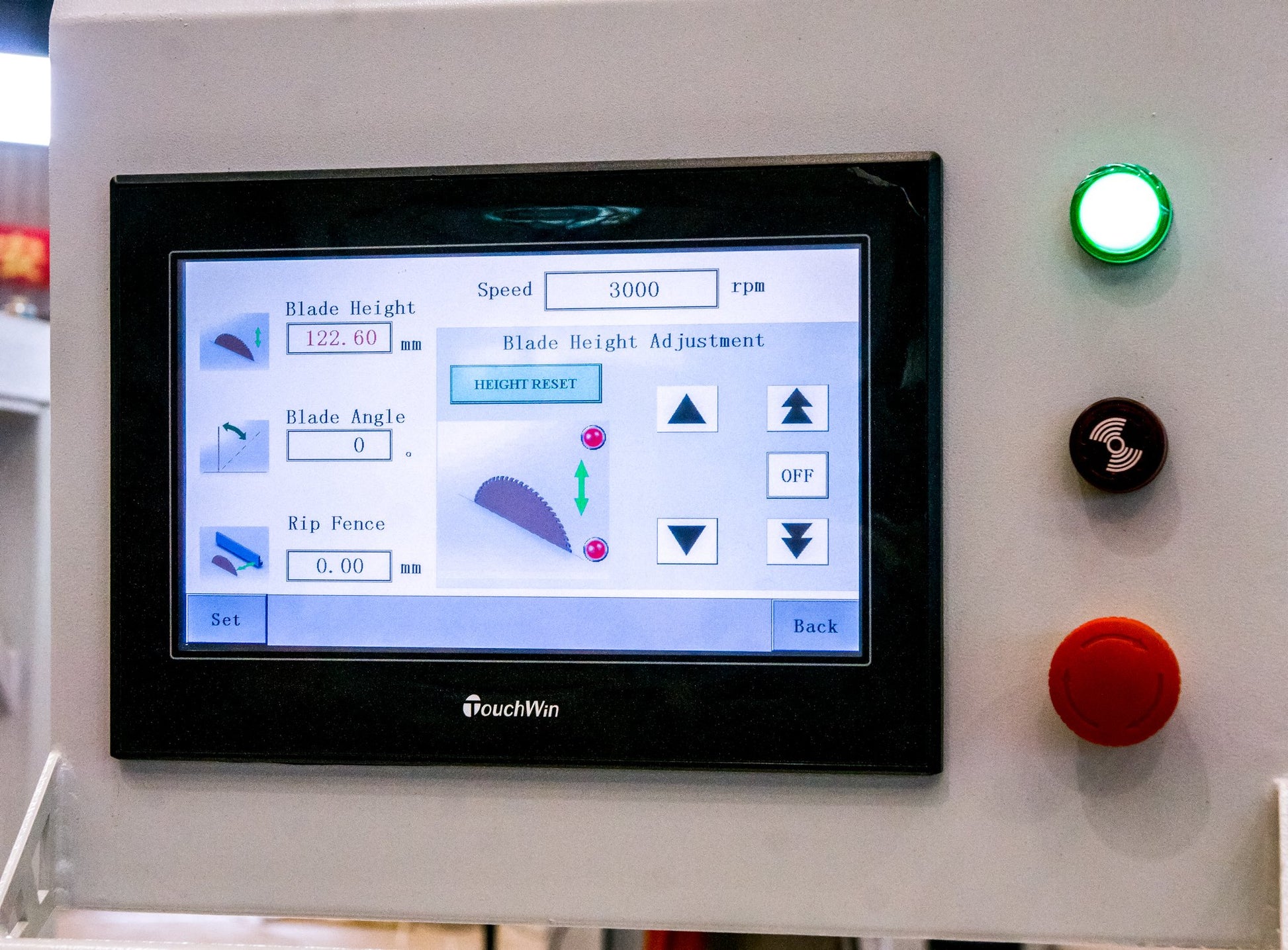

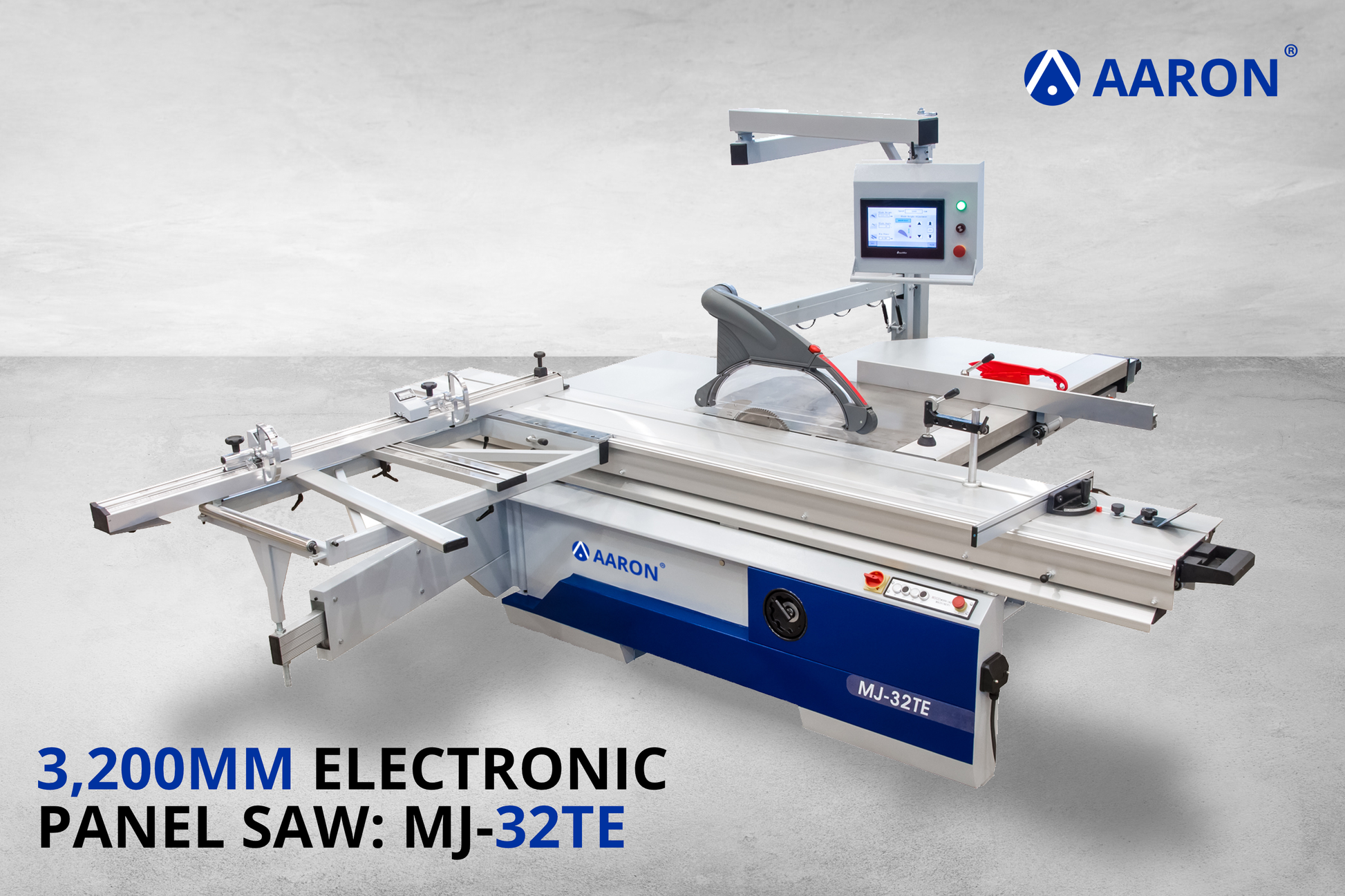

The Aaron MJ-32TE is a 3.2m digital precision panel saw with a touch-screen control interface.

Dimension of sliding table 3200 x 405 mm
Gross cut capacity 3200 mm
Tilting saw blade 90°-45°
Tilting mechanism Electronically controlled
Maximum height of cut 120mm(90°) 75mm(45°)
Maximum main saw blade size
400*30mm
Scoring saw diameter 120*20mm
Main saw power/Scoring saw power 5.5 kW + 1.1 kW
(7.37 HP + 1.47 HP)
Speed of main saw spindle 3000/4000/5000rpm
Speed of Scoring saw blade 9000rpm
Net weight/Gross weight 1000/1100kg
Table height 880mm
