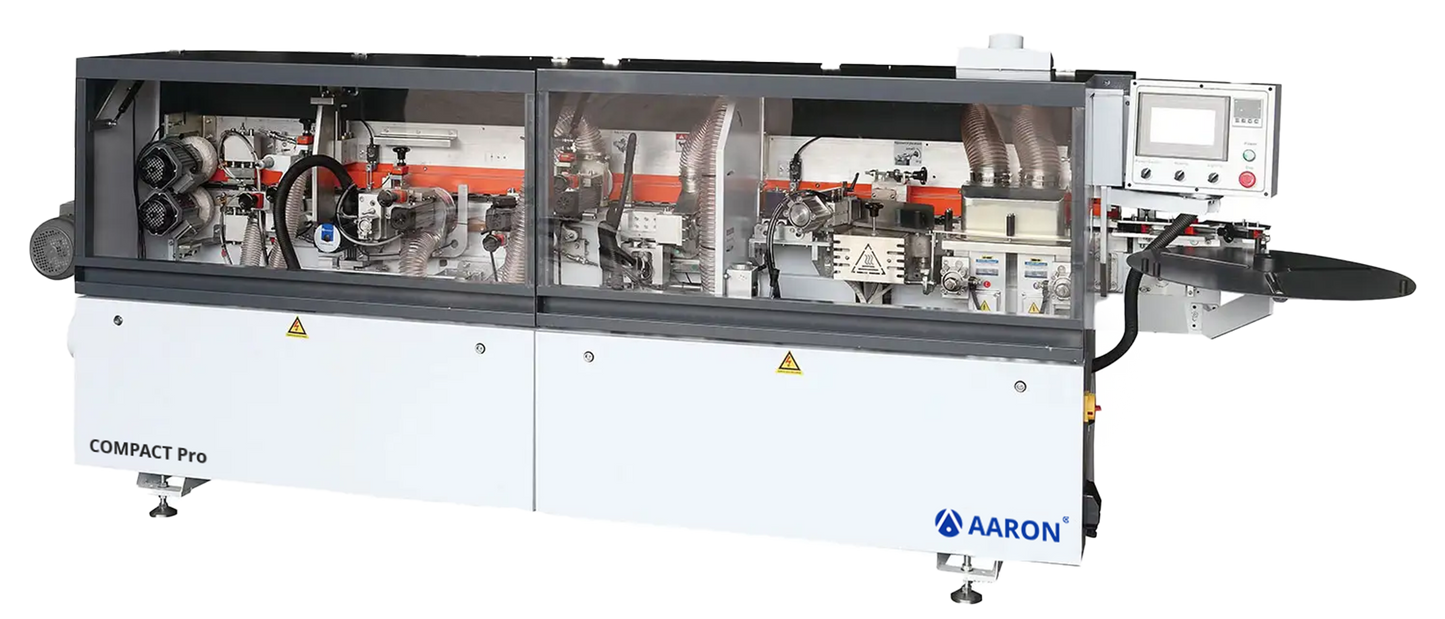

Aaron COMPACT Pro Edgebander - Pre-milling and Corner Rounding, Under 4 Metres
Aaron COMPACT Pro Edgebander - Pre-milling and Corner Rounding, Under 4 Metres
With a length of only 3.55 metres, this solid, compact pre-milling and corner rounding edge banding machine is perfect for Aussie workshops where space is a premium.
Don't need corner rounding? See the Compact Plus model.
Just looking for something basic? See the Compact base model.
Contact us for more information.
COMPACT Pro Functions

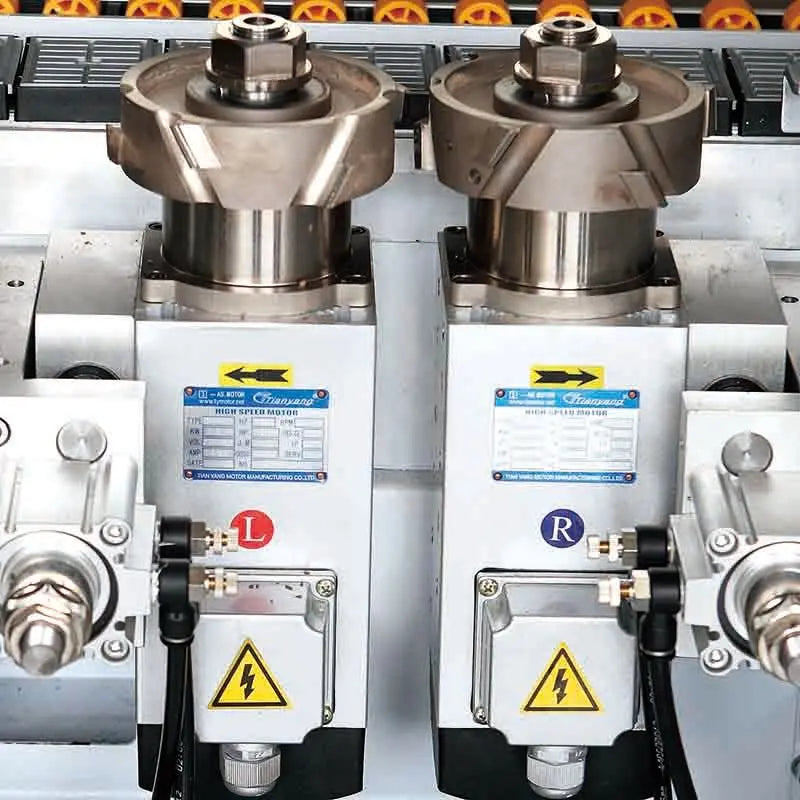

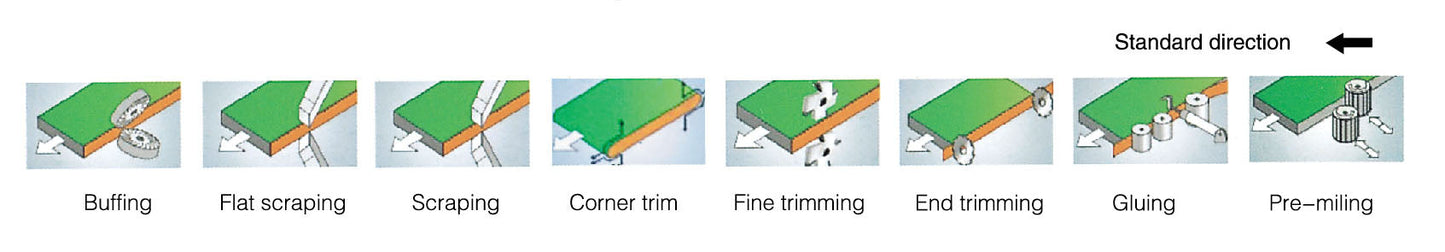

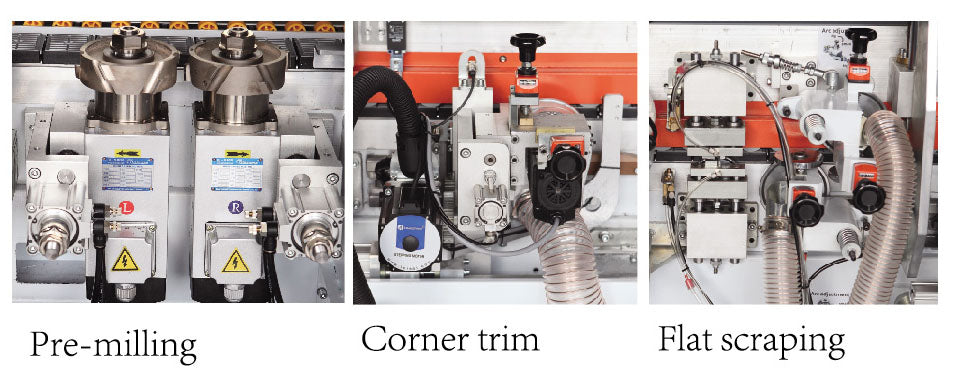

Pre-milling - Gluing - End cutting - Fine trimming - Corner Rounding - Flat Scraping - Scraping - Cleaning - Buffing
Technical Data
Edge thickness | 0.4–3.0 mm | Min panel width | 120 mm |
Working voltage | 3-Phase 415V | Min panel length | 150 mm |
Air pressure | >0.6 MPa | Panel thickness | 10–50 mm |
Feeding speed | 9 m/min | Total power | 12 kW |
Overall dimensions | 3550(L)×640(W)×1316(H) mm | Net weight | 830 kg |
Â
